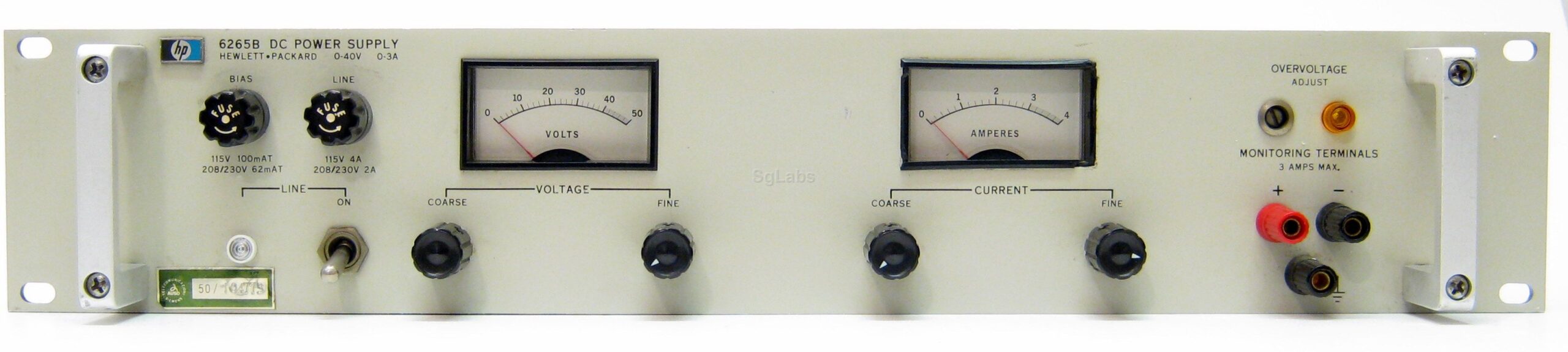

The Agilent/Keysight 6265B is a DC power supply delivering 0–40 V and 0–3 A output across 0–55 °C operation. It operates in both constant voltage and constant current modes, providing load regulation of 0.01% + 200 µV (CV) and 0.02% + 2 mA (CC), with line regulation matching those specifications. Output ripple and noise measure 1 mV rms / 5 mV peak-to-peak in CV mode and 25 mA rms in CC mode, spanning 20 Hz to 20 MHz.
– Technical Specifications
• Output Range: 0–40 V, 0–3 A (0–55 °C)
• Load Regulation (CV): 0.01% + 200 µV
• Load Regulation (CC): 0.02% + 2 mA
• Line Regulation (CV): 0.01% + 200 µV
• Line Regulation (CC): 0.02% + 2 mA
• Ripple and Noise (20 Hz–20 MHz): 1 mV rms / 5 mV peak-to-peak (CV); 25 mA rms (CC)
• Load Transient Recovery Time: < 50 µs
• Load Transient Recovery Level: 10 mV
– Key Features
• Constant Voltage / Constant Current function modes
• Adjustable Over-Voltage Protection and integrated Over-Current Protection
• Analog programmable output with remote sensing capability
• Auto-series, auto-parallel, and auto-tracking operation modes
• Fine voltage and fine current control adjustments
• Floating or grounded output terminal configuration
– Operation Modes
Front-panel manual control and remote operation both supported. Remote analog programming enables integration into automated test environments.
– Compatibility & Integration
Remote sensing and analog programming interfaces facilitate deployment in multi-unit configurations and test automation systems. Auto-series/parallel/tracking functions allow modular expansion for higher voltage, current, or tracking requirements.
