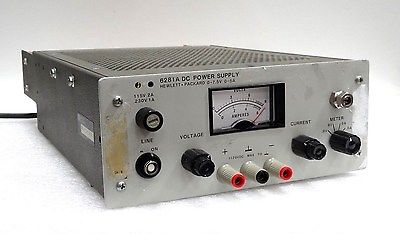

The Agilent/Keysight 6281A is a regulated benchtop DC power supply delivering 10 W across a 0 to 7.5 V, 0 to 5 A output range. It operates in both constant voltage (CV) and constant current (CC) modes, providing metered readback and front-panel control with coarse/fine adjustment capability. The unit features programmable output via analog control inputs (0 to –5 V for voltage, 0 to +5 V for current at 30 kΩ input impedance) and integrates overvoltage, overcurrent, and over-temperature protection with auto-restart functionality.
– Technical Specifications
Output Performance:
• Output Voltage: 0 to 7.5 VDC
• Output Current: 0 to 5 A
• Output Power: 10 W
• Overall Regulation: 0.01%
• Voltage Ripple & Noise: 1.5 mV RMS, 10 mV peak-to-peak
• Transient Response Time: Less than 900 µs (100% to 50% or 50% to 100% load step, recovery within 150 mV)
• Remote Sensing: Up to half the rated output voltage drop per load lead
Programming Accuracy:
• Voltage: 0.05% + 7.5 mV
• Current: 0.1% + 600 mA
– Key Features
• Constant voltage and constant current operating modes
• Analog programmability with high input impedance (≥30 kΩ)
• Three-tier protection: overvoltage, overcurrent, and over-temperature
• Panel lock function prevents accidental setting changes
• Selectable compensation for inductive loads
• Output derating under unbalanced AC input conditions
• GPIB interface support for remote control and automated test integration
– Typical Applications
Burn-in testing, quality assurance, automated test equipment (ATE), research, design, and educational environments requiring stable, controllable DC power with precision metering.
– Compatibility & Integration
GPIB interface enables remote programming and monitoring. VXIplug&play driver support facilitates simplified integration into larger test systems.
