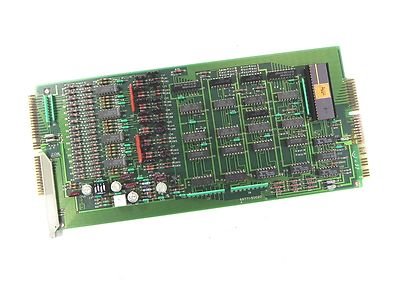

The Agilent/Keysight 69771A is a Digital Input/Analog Comparator Card engineered for integration into modular test and measurement systems. The card provides digital input capabilities for monitoring external signals and incorporates an analog comparator function for threshold-based signal detection. It delivers precise control and monitoring of analog and digital signals within automated test equipment (ATE) environments, laboratory setups, and industrial automation platforms.
– Technical Specifications
Digital Inputs
• Receive standard logic-level signals
• Exact input count and type specifications available in product manual
Analog Comparator
• Compares input analog signal against user-defined threshold
• Output state indicates signal level relative to threshold (above or below)
• Threshold range and accuracy specifications in technical documentation
Interfaces
• Integration via proprietary backplane or standard communication bus
• Compatible with PXI, LXI, or dedicated Keysight system interfaces
Power & Electrical
• Power consumption and voltage requirements dependent on host system
• Operates within specifications of compatible Keysight platforms
• Input voltage levels support TTL and CMOS compatibility
Form Factor
• Plug-in card design for modular instrument chassis
• Dimensions and mounting specifications proprietary to host chassis
– Key Features
• Flexible modular architecture enabling custom system configurations
• Simultaneous digital input monitoring and analog threshold comparison
• Integration into broader Keysight instrumentation ecosystems
• Hardware-based signal conditioning for real-time detection
– Typical Applications
• Automated test equipment signal monitoring and control
• Laboratory measurement systems requiring threshold detection
• Industrial automation systems with mixed-signal requirements
• Multi-instrument test platform configurations
– Compatibility & Integration
The 69771A installs into Agilent and Keysight modular chassis platforms. Operation requires appropriate drivers and software support—typically Keysight’s IO Libraries Suite or host-specific drivers compatible with installed test executive software. Verification of chassis compatibility prior to procurement is essential.
