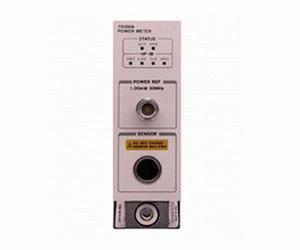

The Agilent/Keysight 70100A is a single-slot power meter module engineered for integration within the Modular Measurement System (MMS) architecture. Based on the proven 437B power meter design, this module delivers measurement capabilities across an exceptionally broad frequency and power range, making it ideal for test systems requiring multiple synchronized power measurement channels. The 70100A accepts the Agilent/Keysight 8480 series of power sensors and provides instrumentation accuracy of ±0.02 dB or ±0.5%.
– Technical Specifications
• Frequency Range: 100 kHz to 110 GHz (sensor dependent)
• Power Range: −70 dBm to +44 dBm (sensor dependent)
• Instrumentation Accuracy: ±0.02 dB or ±0.5%
• Resolution: Selectable
• Duty Cycle: Selectable
– Key Features
• Automatic calibration and zeroing
• Selectable resolution and duty cycle settings
• Save and recall capability for meter configurations
– Typical Applications
The 70100A addresses multi-channel power measurement requirements in production test, component characterization, and system-level RF validation environments where synchronized readings across multiple sensors are required.
– Compatibility & Integration
The module is fully compatible with Agilent/Keysight 8480 series power sensors. Its single-slot form factor is designed for seamless integration into MMS mainframes, allowing users to build modular test configurations with multiple power measurement modules alongside other MMS instrumentation such as digital multimeters and supporting measurement modules.
