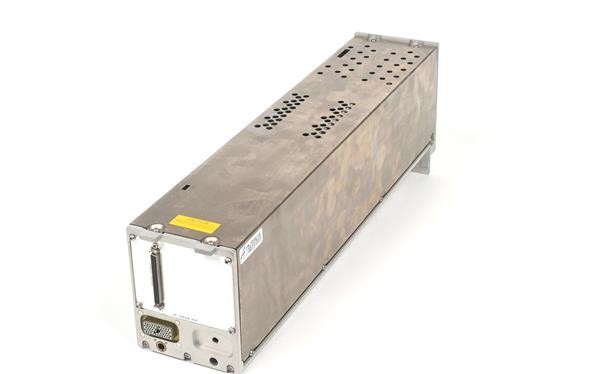

The Keysight 70612B is a local oscillator and signal combiner module for the 70000 Series Modular Measurement System (MMS) mainframe. It combines multiple RF signals into a single output while maintaining signal integrity, minimizing insertion loss, and reducing inter-channel interference. The module supports two independent RF inputs and one combined RF output, making it ideal for applications requiring precise signal mixing, parallel device testing, and multi-source RF characterization.
– Technical Specifications
• Functionality: Signal combiner with controlled impedance matching across wide frequency ranges
• Signal Inputs: Two RF input ports (A and B) with APC-3.5 (female) connectors
• Signal Output: One RF output port with APC-3.5 (female) connector
• Performance: Low distortion, minimal insertion loss, controlled interference suppression
• Internal References: SMA connector interface
• Control Interface: BNC connectors for trigger input/output
– Key Features
• Designed for slot installation within 70000 Series MMS mainframes
• Enables parallel testing of multiple devices through a common signal path
• Maintains precise impedance matching to preserve signal fidelity
• Front panel status LEDs for operational monitoring
• Extraction tool provided for convenient module removal
– Typical Applications
• Communications system testing and characterization
• Radar systems development and validation
• RF circuit characterization and measurement
• Multi-device parallel testing environments
• Precision signal mixing for complex test scenarios
– Compatibility & Integration
• Mainframe Requirement: HP 70000 Series MMS platforms (70000A, 70001A, 70004A compatible)
• RF Cabling: Requires APC-3.5 (male) or SMA (male) terminated cables
• Installation: Module installs directly into MMS mainframe backplane slots
