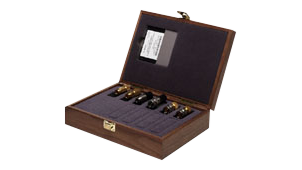

The Keysight/Agilent 85032F is a standard mechanical calibration kit for precise Type-N connector characterization across DC to 9 GHz. Designed to verify and optimize network analyzer accuracy, this 50-ohm kit delivers metrology-grade performance through precision-machined standards and broadband terminations with distributed resistive elements on sapphire substrates.
– Technical Specifications
Frequency Range: DC to 9 GHz
Impedance: 50 Ohms
Connector Type: Type-N (male and female pairs)
Broadband Loads
• DC to ≤2 GHz: Return Loss ≥48 dB (≤0.00398ρ)
• >2 GHz to ≤3 GHz: Return Loss ≥45 dB (≤0.00562ρ)
• >3 GHz to ≤6 GHz: Return Loss ≥40 dB (≤0.010ρ)
• >6 GHz to ≤9 GHz: Return Loss ≥38 dB (≤0.0126ρ)
Adapters (Optional)
• DC to ≤9 GHz: Return Loss ≥34 dB (≤0.01996ρ)
– Key Features
• Six-piece standard set: male and female offset opens, offset shorts, and broadband loads
• One-piece inner conductor construction on shorting standards for repeatability
• Rugged termination design ensures highly repeatable connections over thermal cycles
• Sapphire-substrate distributed resistive elements provide stable return loss across full bandwidth
• Optional adapter configurations include male-to-male, female-to-male, female-to-female, and 7mm-to-Type-N converters
– Typical Applications
• Network analyzer calibration and verification for Keysight and Agilent systems
• Type-N component and connector characterization
• Systematic error correction in RF and microwave measurement chains
• Calibration kit verification and periodic performance assessment
– Compatibility & Integration
The 85032F calibrates Keysight and Agilent network analyzer platforms. Multiple configurations—85032F-100 (standard), 85032F-200 (with male-to-male adapter), 85032F-300 (with female-to-male adapter), and 85032F-500 (with four 7mm-to-Type-N adapters)—enable operation across diverse test setups. User documentation covers specifications, maintenance, performance verification, and replaceable parts.
