Agilent/Keysight 8510SX

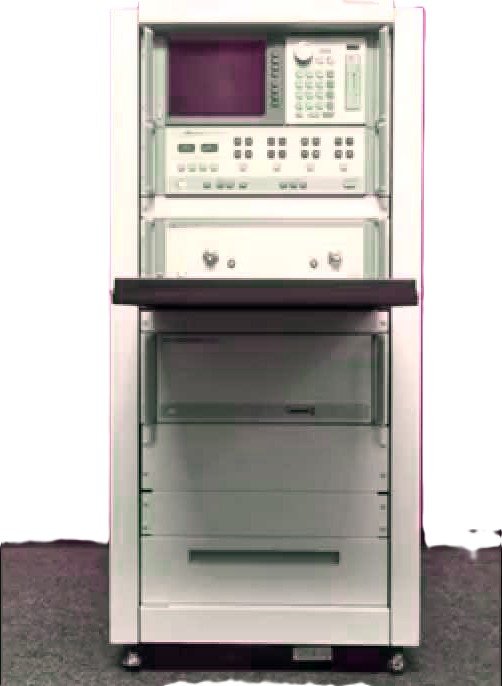

The Agilent/Keysight 8510SX is a preconfigured vector network analyzer system delivering integrated microwave and RF component characterization from 45 MHz to 26.5 GHz. This factory-integrated rack system combines the 8510C analyzer with a 26.5 GHz S-parameter test set, synthesized sweeper, and complete 3.5 mm measurement accessory suite for immediate deployment.

– Technical Specifications

Frequency & Dynamic Range
• Operating frequency: 45 MHz to 26.5 GHz
• System dynamic range (transmission): 68 dB
• Receiver dynamic range: 86 dB

Measurement Resolution
• Magnitude: 0.001 dB
• Phase: 0.01 degree
• Group delay: 0.01 ns

System Configuration
• Base analyzer: Agilent/Keysight 8510C
• Test set: 8515A S-parameter test set
• RF source: 83631B synthesized sweeper
• Calibration kit: 85052C 3.5 mm precision calibration kit
• Test cables: 85131F 3.5 mm test port cable set
• Verification kit: 85053B 3.5 mm verification kit

– Key Features

• Real-time error-corrected measurements for linear network characterization
• Dual-format display: log/linear magnitude, phase, and group delay
• TRL two-port calibration capability
• Optional time-domain measurement capability
• Optional pulsed RF measurement capability
• Rack-integrated configuration shipped ready for operation

– Typical Applications

• Active and passive microwave network characterization
• S-parameter measurement and verification
• Linear behavior analysis of RF components

– Compatibility & Integration

• Standard 3.5 mm connector interface throughout
• Compatible with Agilent 85190 series software and workstations
• Pre-integrated system rack eliminates field assembly requirements
