Agilent/Keysight 86061C

The Keysight 86061C is a mid-size lightwave optical switch engineered for high-performance optical signal routing in test and measurement applications. This bi-directional switch accommodates single-mode fiber (9/125 µm) and multi-mode fibers (62.5/125 µm and 50/125 µm), with configurations supporting 1 or 2 input channels and up to 16 total output channels. A precision stepper motor mechanism delivers 10 million minimum switching cycles with repeatability down to ±0.005 dB between adjacent channels.

– Technical Specifications

• Fiber Compatibility: Single-mode (9/125 µm), Multi-mode (62.5/125 µm, 50/125 µm)
• Switching Configuration: 1×16 and 2×16 options
• Output Channels: Up to 12 front panel, up to 18 rear panel
• Insertion Loss (Single-mode): 0.7 dB characteristic / 1.0 dB hard spec; (Multi-mode): 0.6 dB characteristic / 0.8 dB hard spec — excludes connectors (add 0.25 dB characteristic or 0.5 dB hard spec per connector)
• Insertion Loss Stability: ±0.025 dB characteristic / ±0.03 dB hard spec
• Repeatability: Sequential ±0.005 dB characteristic / ±0.008 dB hard spec; Random ±0.01 dB characteristic / ±0.025 dB hard spec
• Optical Return Loss: Single-mode 62 dB characteristic / 58 dB hard spec; Multi-mode 25 dB characteristic / 20 dB hard spec
• Polarization Dependent Loss (Single-mode): 0.02 dB characteristic / 0.05 dB hard spec
• Isolation: –100 dB characteristic / –80 dB hard spec
• Switching Time: 330 msec between adjacent channels; 50 msec per additional channel
• Switching Life: 10 million cycles minimum
• Chassis: Half-width, mid-size format (177 x 213 x 345.4 mm)
• Weight: 4.0 to 6.18 kg

– Key Features

• Temperature-stabilized design for improved repeatability

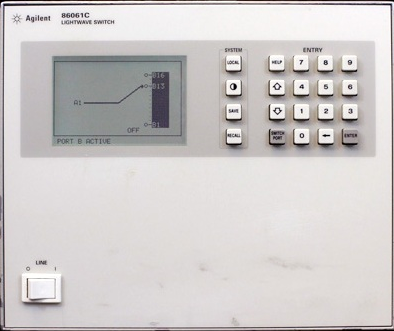

• Visual signal path display for operation monitoring
• SCPI-compatible command set over GPIB and RS-232 control interfaces
• Operating temperature range 0 to +55°C
• Power supply 100/115/230/240 V (90–254 VAC range); up to 80 VA consumption

– Typical Applications

Optical signal routing, component characterization, multiwavelength system testing, and automated fiber optic measurements requiring precise switching control and low insertion loss.

– Compatibility & Integration

GPIB and RS-232 interfaces enable integration into automated test systems and remote operation via SCPI commands.
