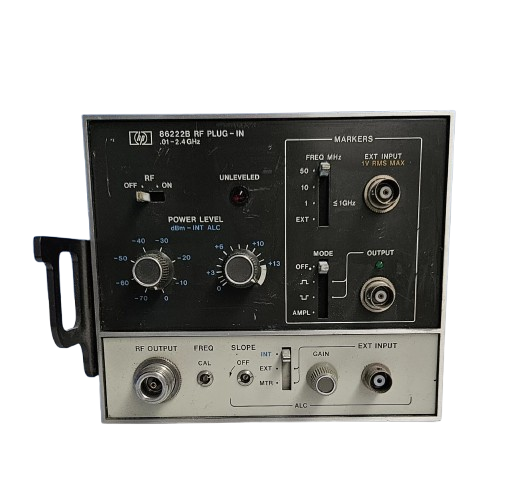

Agilent / Keysight 86222B RF plug-in

The Agilent/Keysight 86222B is an RF plug-in module designed for the 8620 series sweep oscillator mainframes. It delivers continuous swept-frequency coverage from 10 MHz to 2.4 GHz with calibrated power output from 0 to +13 dBm in 1 dB increments. The module maintains ±0.25 dB flatness across the entire frequency range and integrates a crystal marker system with selectable intervals of 1, 10, or 50 MHz for CRT display or RF signal monitoring.

– Technical Specifications

• Frequency Range: 10 MHz to 2.4 GHz (continuous sweep)
• Calibrated Power Output: 0 to +13 dBm
• Power Output Increments: 1 dB steps
• Maximum Leveled Power: >20 mW (+13 dBm)
• Internally Leveled Flatness: ±0.25 dB across full range
• Residual AM (100 kHz bandwidth): <−50 dBc
• Harmonic Spurious Signals: <−25 dBc at +13 dBm output power

– Key Features

• Crystal marker system with 1, 10, or 50 MHz interval selection
• Markers displayable as intensified CRT spots or RF output amplitude dips
• Optional rear-panel RF output with 0 to 70 dB step attenuator (Option 002/004)
• Z-axis input for marker display synchronization
• Marker output for external display control

– Compatibility & Integration

Designed exclusively for integration with Agilent/Keysight 8620 series sweep oscillator mainframes. Standard RF output connector; Option 002/004 provides rear-panel RF output with integrated step attenuator for enhanced signal path control.
