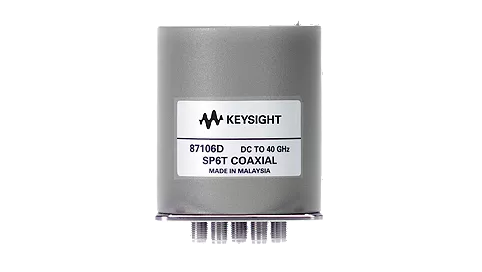

Agilent/Keysight 87106DH24

The Agilent/Keysight 87106DH24 is a Single Pole Six Throw (SP6T) electromechanical coaxial switch engineered for RF and microwave signal routing across DC to 40 GHz. This multiport switch delivers terminated ports with magnetic latching and electronic position indication, ensuring high repeatability and measurement accuracy in demanding test environments.

– Technical Specifications

• Configuration: SP6T with terminated ports
• Frequency Range: DC to 40 GHz
• Connector Type: 2.4 mm
• Insertion Loss Repeatability: 0.03 dB guaranteed over 5 million cycles at 25 °C
• Isolation: Minimum 65 dB at 40 GHz
• Operating Life: Typical 10 million cycles
• Maximum Withstand Voltage: 60 V
• Maximum Current Capacity: 150 mA
• Maximum ON Resistance: 2.5 Ω
• Maximum OFF Resistance: 10 GΩ

– Key Features

• Magnetic latching mechanism reduces power consumption during hold state
• Electronic position indicator confirms switch state
• Current interrupt capability integrated into control logic
• Standard 24 Vdc supply (Option 024)
• TTL/5V CMOS compatible control available with 24 Vdc supply (Option T24)
• 16-pin DIP control connector with 24-inch ribbon cable standard (Option 161)

– Typical Applications

• Radar and satellite testing systems
• Wireless communications measurement
• Microwave backhaul networks
• Automated test equipment (ATE) for network analysis

– Compatibility & Integration

Designed for integration into advanced network analysis systems and ATE platforms requiring precision RF signal routing with high cycle reliability and minimal insertion loss variation across extended operating life.
