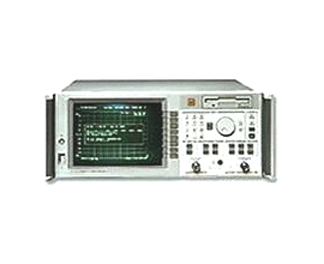

The Agilent/Keysight 8711A is a scalar network analyzer that combines a synthesized source, transmission/reflection test set, and CRT display in a single integrated instrument. It delivers fast, accurate RF component characterization from 300 kHz to 1.3 GHz with 50 ms sweep speed and up to 100 dB system dynamic range. Built for high-volume manufacturing and production test environments, the 8711A simplifies setup through HP Instrument BASIC automation and keystroke recording while maintaining precision across gain, loss, return loss, SWR, and conversion loss measurements.
– Technical Specifications
• Frequency Range: 300 kHz to 1.3 GHz
• Frequency Resolution: 1 Hz
• Source Output Power: 0 dBm to +16 dBm
• Sweep Speed: 50 ms/sweep
• Dynamic Range (100 dB system):
– Narrowband (50 Ω): >90 dB
– Broadband (50 Ω): >66 dB
– Narrowband (75 Ω): >87 dB
– Broadband (75 Ω): >63 dB
• System Impedance: 50 Ω standard; 75 Ω available (Option 1EC)
• Detection Modes: Narrowband (high-rejection devices) and broadband (frequency translation devices)
– Key Features
• Eight markers per channel with search, tracking, and bandwidth calculation functions
• Nine internal save/recall registers for instrument state storage
• 3.5-inch floppy disk drive (LIF/DOS format) for measurement data and IBASIC programs
• HP Instrument BASIC with keystroke recording for measurement automation
• Eight distinct measurement modes: transmission/reflection frequency response, insertion loss, gain, return loss, conversion loss, power, SWR, and delay
• HP-IB (IEEE-488) interface for instrument control and automated data transfer
• Serial and parallel interfaces for printer and plotter connectivity
– Typical Applications
• RF component manufacturing and characterization
• Production-line testing of narrowband and broadband devices
• Gain and loss measurement across UHF and lower-microwave frequencies
• SWR and return loss validation in 50 Ω and 75 Ω systems
– Compatibility & Integration
The 8711A pairs with IBM-compatible PCs via DOS-formatted disk storage and supports optional DIN keyboard input. Calibration standards for Type-N connectors (both 50 Ω and 75 Ω) and external detectors enable remote device measurements. Optional rack mount kit (1CM) and soft carry case (1CF) accommodate varied deployment scenarios.
