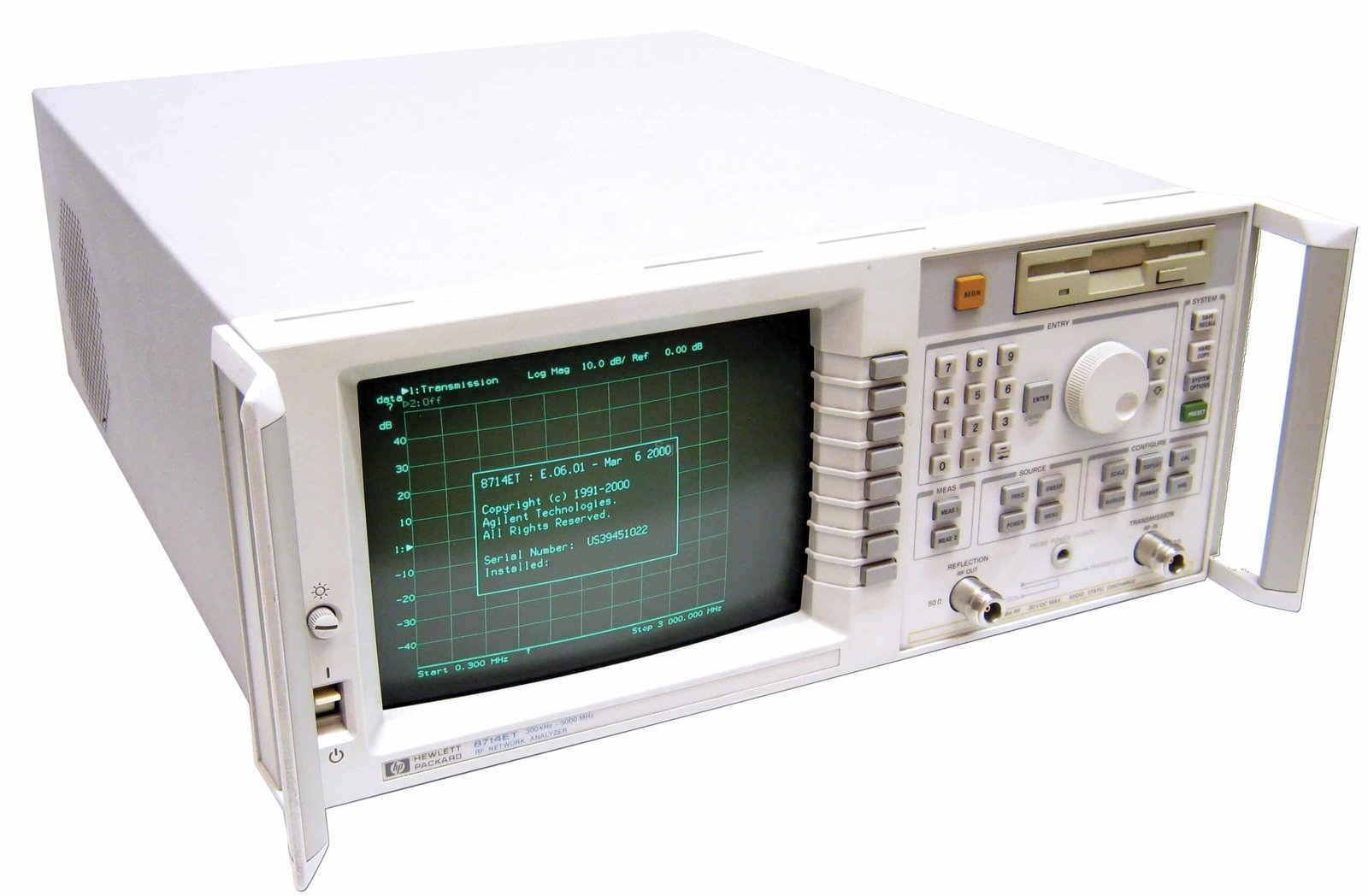

The Agilent/Keysight 8712ET is a vector network analyzer engineered for manufacturing and R&D testing of RF components from 300 kHz to 1.3 GHz. The instrument combines a synthesized RF source, transmission/reflection test set, three independent multi-mode receivers, and integrated display in a single chassis. Available in 50-ohm and 75-ohm configurations, it delivers dynamic range exceeding 100 dB in narrowband-detection mode and employs vector-error-correction techniques for measurement accuracy.
– Technical Specifications
• Frequency range: 300 kHz to 1.3 GHz
• Impedance: 50-ohm or 75-ohm versions
• Source output power: Up to +16 dBm (extendable to −60 dBm with Option 1E1 attenuator)
• Frequency resolution: 1 Hz
• Sweep time: 40 ms or faster
• Receiver dynamic range: Greater than 100 dB (narrowband-detection mode)
• Detection modes: Narrowband and broadband
• Display: 9-inch (23 cm) internal CRT
• Power consumption: 230 W nominal
• Input voltage: 115 V or 230 V nominal
• Connectors: Type-N female (50-ohm standard; 75-ohm with Option 1EC)
– Key Features
• Three independent, multi-mode receivers
• Synthesized RF source with 1 Hz frequency resolution
• Vector-error-correction measurement techniques
• Fine bandwidth (15 Hz) capability at 25 °C ±5 °C
• Built-in 3.5-inch DOS-compatible disk drive for data and calibration storage
• 60-minute thermal stabilization requirement before specification compliance
– Measurement Capabilities
• Transmission and reflection measurements
• Return loss and SWR
• Insertion loss and gain
• Reflection coefficient and impedance
• Insertion phase and linear group delay
• Isolation and gain compression
• AM-to-PM conversion
• Absolute power measurement
• Fault location and Structural Return Loss (SRL) with Option 100
– Compatibility & Integration
• GPIB (IEEE 488.2) interface
• Ethernet 10Base-T TCP/IP-compliant LAN
• Serial RS-232C and parallel Centronics ports
• VGA-compatible monitor output
• TTL-level limit-test output
• User-TTL and footswitch control inputs
• Keyboard/bar-code interface (6-pin mini-DIN)
• Instrument BASIC (IBASIC) programming support
• SCPI command compatibility
• Firmware revision E.06.00 and above
