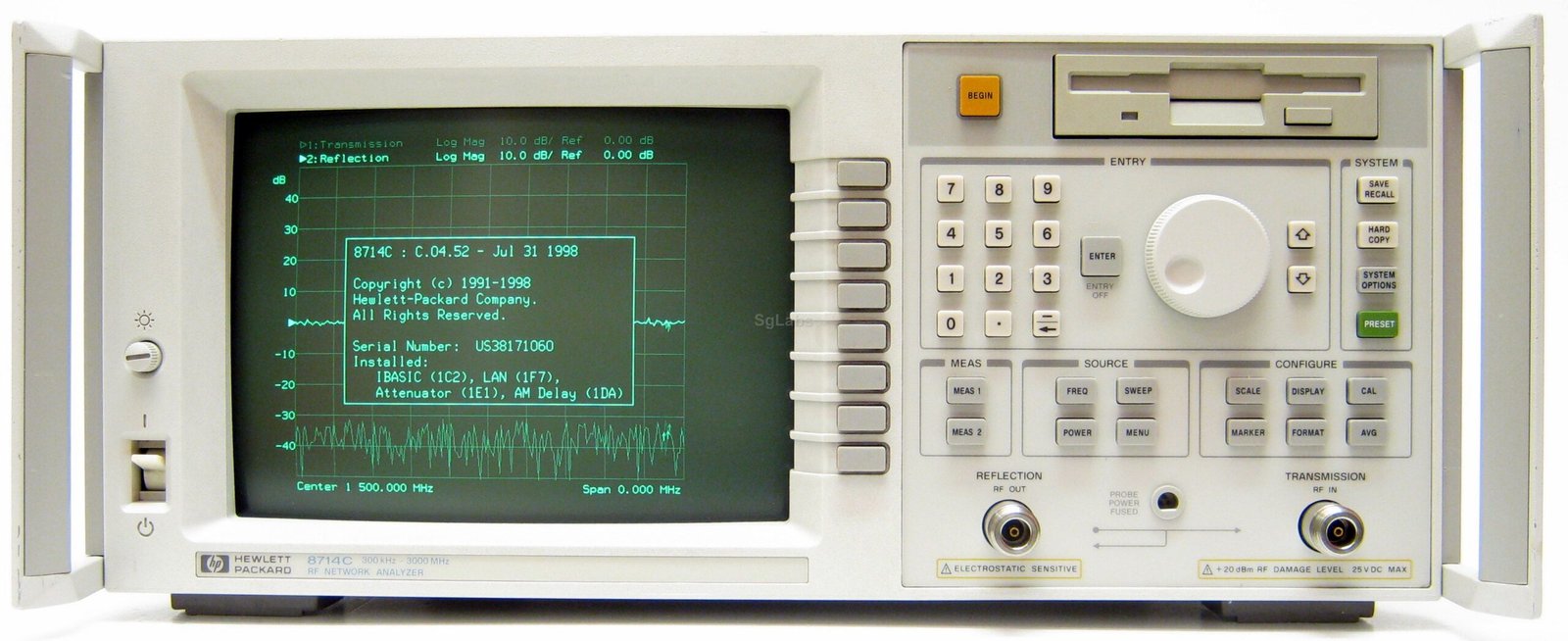

The Agilent/Keysight 8714C is an economy RF vector network analyzer engineered for high-volume manufacturing, inspection, and maintenance of RF components. Operating from 300 kHz to 3 GHz, it delivers simultaneous dual-channel measurement and display with integrated synthesized source and transmission/reflection test set. A single connection enables comprehensive swept-frequency characterization of RF components with 50 ms/sweep speed and up to 100 dB system dynamic range. The instrument supports multiple measurement formats—rectilinear, phase, group delay, Smith Chart, polar, and specialized broadband modes—with error term correction for improved accuracy. Internal 9-inch display and VGA interface enable flexible monitoring, while dual independent channels support single, overlay, and split-screen modes with eight markers per channel. Data storage via 3.5-inch disk drive accommodates 20 instrument states and multiple formats including MS-DOS, binary, ASCII, and graphics output. GPIB (IEEE 488.2, SCPI), RS-232C, Centronics, and optional TCP/IP Ethertwist LAN with FTP ensure flexible integration into test environments.
– Technical Specifications
Frequency Range: 300 kHz to 3 GHz
Source Characteristics
• Synthesized source with 1 Hz resolution
• Output power: -10 to +16 dBm
• Harmonics: < -30 dBc
• Nonharmonic spurious: < -30 dBc (≥1 MHz)
• Phase noise: -67 dBc/Hz (10 kHz offset)
• Residual AM: < -50 dBc (100 kHz bandwidth)
• Residual FM: < 1.5 kHz peak (30 Hz to 15 kHz)
• Real-time sweep speed: 50 ms/sweep
Dynamic Range
• System dynamic range: 100 dB
• Wide IF bandwidth (6500 Hz): 70 dB
• Medium IF bandwidth (3700 Hz): 90 dB
• Narrow IF bandwidth (250 Hz): 105 dB
• Fine IF bandwidth (15 Hz): 110 dB
Measurement Capabilities
• Dual independent channels with simultaneous measurement
• Formats: Rectilinear (log/linear magnitude, SWR), phase, group delay, real/imaginary, Smith Chart, polar
• Narrowband modes: Reflection (A/R), transmission (B/R), A, B, R
• Broadband modes: X, Y, Y/X, X/Y, Y/R, power (B, R), conversion loss (B/R)
• Error term correction; AM delay and fault location options available
Display and Interfaces
• 9-inch internal display; VGA for external monitors
• Dual-channel display: single, overlay, split-screen modes
• Eight markers per channel with search, tracking, and delta functions
• GPIB (IEEE 488.2, SCPI), RS-232C, Centronics, optional TCP/IP Ethertwist LAN
Storage and Impedance
• Internal 3.5-inch disk drive (LIF/DOS); 380 Kbyte memory for 20 states
• 50 Ω standard; 75 Ω option (1EC)
• N-type connectors
– Key Features
• 100 dB system dynamic range with flexible IF bandwidth selection
• Dual independent channels reduce test time and setup complexity
• Integrated source and test set eliminate external component requirements
• Eight markers per channel enable precise frequency and magnitude targeting
• Multiple display modes support both single-parameter and comparative analysis
– Typical Applications
• Component characterization and acceptance testing
• Manufacturing quality control and process verification
• Field maintenance and troubleshooting of RF assemblies
• S-parameter measurement and documentation
– Compatibility and Integration
GPIB and SCPI compliance enable seamless automation. Optional TCP/IP Ethertwist LAN and FTP support remote operation and data transfer. Internal IBASIC capability provides local programmability for custom measurement sequences.
