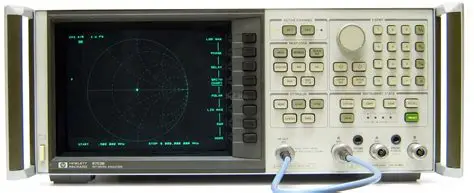

Agilent/Keysight 8753B

The Agilent/Keysight 8753B is a versatile Vector Network Analyzer designed for comprehensive RF and microwave device characterization. It operates within a frequency range of 300 kHz to 3 GHz, with an optional upgrade to 6 GHz. This instrument is well-suited for testing a wide array of components and networks, including filters, amplifiers, and antennas, offering precise and reliable measurement capabilities for both laboratory and production environments.

### Technical Specifications

**Frequency Range:**
* 300 kHz to 3 GHz
* Optional 6 GHz capability (requires Option 006 or 8753B/C with Option 006 for certain test sets)

**Source Characteristics:**
* Integrated synthesized source
* Output Power: 100 mW
* Frequency Resolution: 1 Hz
* Sweep Types: Linear, log, list, power, CW

**Receiver Characteristics:**
* Three tuned receivers
* Frequency Range: 300 kHz to 3 GHz
* Dynamic Range: Greater than 100 dB
* Measurement Points per Channel: Up to 1601

**Measurement Accuracy and Performance:**
* Dynamic Accuracy: 0.05 dB over a 40 dB range
* Reflection Coefficient: <0.05 (100 MHz to 1.0 GHz), <0.09 (1.0 to 2 GHz) * Directivity: Varies by test set, e.g., 35 dB to 1.3 GHz, 30 dB to 3.0 GHz for 8753D. For 8753ES/ET, directivity can be up to 55 dB. * Source Match: Varies by test set, e.g., 14 dB (0.3 MHz to 2.0 MHz), 20 dB (2.0 MHz to 1.3 GHz) for 8753D. For 8753ES/ET, source match can be up to 47 dB. * Load Match: Varies by test set, e.g., 15 dB** for 8753D. For 8753ES/ET, load match can be up to 55 dB. * Transmission Magnitude/Phase Tracking: Typically ±1.5 dB, ±10° from 300 kHz to 3 GHz. For 8753ES/ET, ±1 dB tracking is available in certain ranges. * Reflection Magnitude/Phase Tracking: Typically ±1.5 dB, ±10° from 300 kHz to 3 GHz. For 8753ES/ET, ±1 dB tracking is available in certain ranges.**Display and Analysis Features:** * Large 9" high-resolution display * Multiple Display Formats: Log magnitude, SWR, phase, group delay, polar, Smith Chart * Simultaneous measurement and display of reflection and transmission characteristics on two independent channels * Time Domain Analysis capability * Swept Harmonic Measurements * Group Delay and Deviation from Linear Phase measurements * Marker Resolution: 0.001 dB, 0.01 deg, 0.01 nanosec * Test Sequence Function for executing complex test procedures * Accuracy Enhancement capabilities**Electrical Specifications:** * Impedance: 50 ohms nominal (also 75 ohm Type N options) * Maximum Input Power: +24 dBm (250 mW)**Interfaces:** * Test Port Connectors: Hybrid APC-7 * Option 001: Type N female connectors * Rear Panel BNC Outputs: One provides a TTL signal indicating the result of the Test Sequence function**Physical Characteristics:** * Dimensions: 90 mm (H) x 426 mm (W) x 533 mm (D) (approximately 3.5 x 16.75 x 21 inches) * Weight: 10 kg (22 lb) (6.8 kg / 15 lb net for 8753D)**Compatibility and Options:** * Can be used with S-parameter test sets such as the HP 85046A or HP 85047A * Option 006: 6 GHz Receiver Option (enables 6 GHz operation with specific test sets) * Option 010: Time Domain Capability * Option 011 (for 8753ES): Full 300 kHz to 6 GHz range without frequency doubler### Why Choose Aumictech for Agilent/Keysight 8753B?At Aumictech, we specialize in supplying high-end RF and microwave test equipment. Whether you need the precise measurement capabilities of the Agilent/Keysight 8753B for complex filter analysis, reliable amplifier characterization, or accurate antenna testing, our team ensures this vector network analyzer delivers maximum performance for your application.
