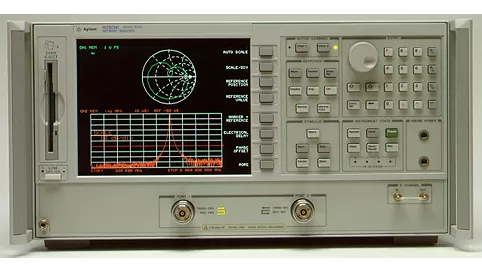

Agilent/Keysight 8753E

The Agilent/Keysight 8753E is a vector network analyzer for measuring magnitude and phase response of RF devices from 30 kHz to 3 GHz, with optional extension to 6 GHz. It delivers dynamic range up to 110 dB at 3 GHz and features an integrated synthesized source with solid-state switching test set for complete S-parameter characterization. The instrument supports simultaneous measurement and display of all four S-parameters across two independent channels, with flexible sweep modes including linear frequency, logarithmic frequency, list frequency, CW, and power sweep.

– Technical Specifications

Frequency range spans 30 kHz to 3 GHz standard, extending to 6 GHz with Option 006. Dynamic range reaches 110 dB at 3 GHz and 105 dB at 6 GHz. The integrated synthesized source delivers up to 10 mW output power (100 mW with Option 011) with 1 Hz frequency resolution. Test port power adjusts over a 95 dB range. IF bandwidth options include 10 Hz for optimized dynamic range and 6 kHz for maximum speed. Dynamic accuracy is 0.05 dB with sensitivity to -100 dBm.

– Key Features

• Integrated S-parameter test set measures transmission and reflection characteristics up to 6 GHz without frequency doubler
• Display formats include magnitude, phase, group delay, Smith chart, polar coordinates, SWR, and time-domain
• Large color LCD with VGA output for external monitor support
• Two independent measurement channels for simultaneous measurement
• Optional harmonic measurement capability (Option 002) and time-domain measurements (Option 010)
• TRL/LRM calibration for non-coaxial environments; adapter-removal calibration for non-insertable devices
• Broadband calibration with up to 1,601 points and interpolative error-correction mode
• Optional RF electronic calibration (eCal) for 30 kHz to 6 GHz
• Automated pass/fail testing with TTL output for part handlers
• 3.5-inch floppy disk drive for data and state storage

– Typical Applications

Mixer testing and characterization of frequency translating devices; gain compression measurements; second and third harmonic distortion analysis.

– Compatibility & Integration

HP-IB, parallel, and RS-232 interfaces. DIN keyboard input supported. Operates on 90–132 VAC or 198–265 VAC (47–66 Hz, single phase). Power consumption: 350 VA maximum. Weight: approximately 46 pounds (21 kilograms).
