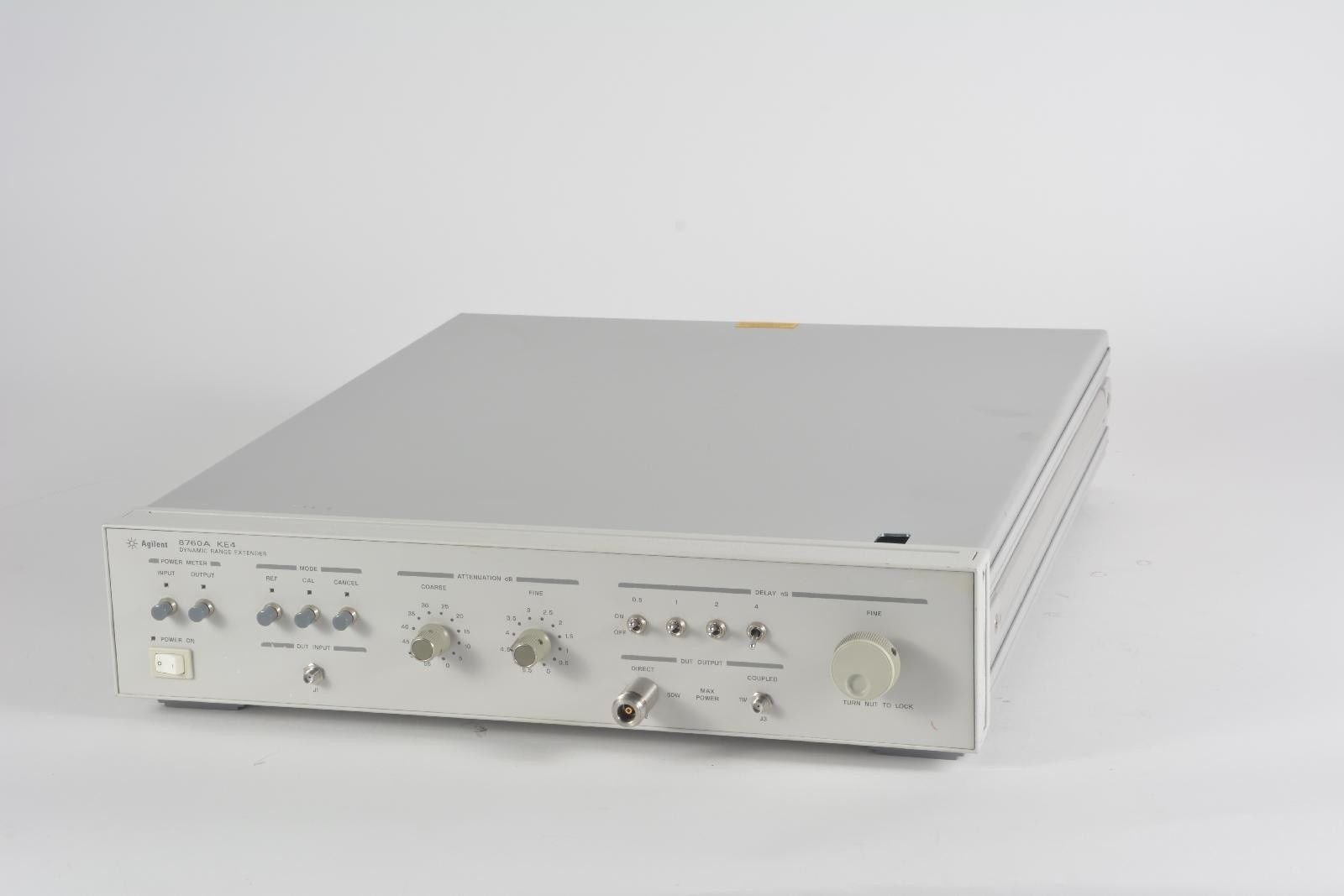

The Agilent/Keysight 8760A is a programmable attenuator engineered for precise signal control across RF and microwave frequencies. It delivers high accuracy and exceptional repeatability, making it the instrument of choice for automated test equipment (ATE) systems and signal conditioning applications where reliable RF power management is essential.
– Technical Specifications
• Impedance: 50 Ohms
• Accuracy: High accuracy across operating range
• Repeatability: Excellent repeatability performance
• RF Connectors: SMA (f) or 3.5 mm (f) options
– Key Features
• Programmable attenuation control for dynamic signal conditioning
• Wide dynamic range enabling diverse measurement and testing scenarios
• TTL/5V CMOS compatible logic for straightforward system integration
• GPIB interface for remote control and automation
• Designed for integration into complex RF and microwave test systems
– Typical Applications
• Automated test equipment (ATE) systems
• RF signal conditioning modules
• Precision signal control in laboratory and production environments
• Microwave test and measurement systems requiring calibrated attenuation
– Compatibility & Integration
The 8760A is part of the Keysight family of programmable RF components. Its design aligns with standard RF/microwave connectors and control interfaces used across Keysight test platforms. Integration into existing ATE architectures leverages established GPIB and logic-level control protocols.
