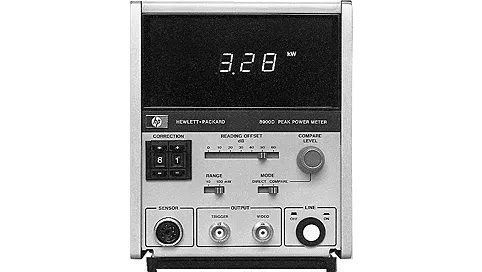

The Agilent/Keysight 8900D is a peak power meter engineered for direct RF pulse power measurement across 100 MHz to 18 GHz. The instrument displays power readings in watts on a high-resolution 3½-digit digital display, making it ideal for applications demanding unambiguous or frequent power assessments. It operates in two measurement modes—Direct and Compare—each optimized for different pulse characteristics and accuracy requirements.
– Technical Specifications
Frequency & Power Range
• Operating frequency: 100 MHz to 18 GHz
• Power measurement range: 0 to +20 dBm
• Dynamic range: 20 dB
Pulse Measurement Capability
• Pulse width: 1 µs to CW (Direct Mode); 100 ns typical (Compare Mode)
• Repetition rate: 100 Hz to 100 kHz (Direct Mode); 0 to 100 kHz (Compare Mode)
• Rise-time: 75 ns typical
• Fall-time: 125 ns (video output measurement)
Measurement Accuracy
• CW mode: ±0.2 dB (Direct and Compare)
• Pulse mode: ±0.35 dB (Direct), ±0.25 dB (Compare)
• CW-to-pulse transfer: ±0.2 dB (Direct), ±0.1 dB (Compare)
Power Requirements
• Input: 100/120 Vac or 220/240 Vac, +5/−10% tolerance
• Frequency: 48 to 66 Hz and 360 to 440 Hz
– Key Features
• Direct reading digital display calibrated in watts
• Range annunciator for operational clarity
• Remote control option (H01) via rear panel BNC connector for 10 mW and 100 mW range selection
• Dual measurement modes optimized for different pulse profiles
• Sensor-based design with dedicated 84811A peak power sensor integration
– Compatibility & Integration
Designed for use with the Agilent/Keysight 84811A peak power sensor. Remote control capability available through optional H01 module.
