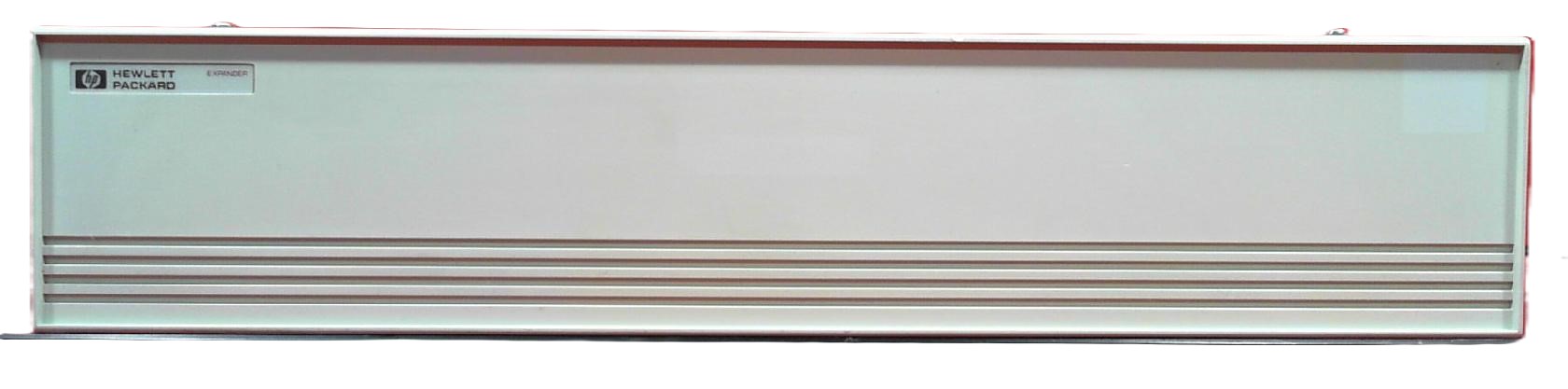

The Agilent/Keysight A2247A is a 4-slot DIO-I BUS Expander that extends the digital input/output capabilities of Agilent and Keysight test and measurement systems. This module provides direct connectivity for additional DIO-I BUS compatible devices, scaling system functionality without requiring complete platform replacement.
– Technical Specifications
• Product Type: DIO-I BUS Expander
• Expansion Slots: 4
• Primary Interface: DIO-I BUS
• Form Factor: Module for rack or chassis integration
– Key Features
• Four expansion slots support modular addition of DIO-I BUS compatible devices
• Direct bus interface eliminates external cabling requirements for slot-based connections
• Designed for integration into existing Agilent/Keysight test platforms
• Used condition, 80%-99% new appearance with full functional capability
– Typical Applications
Systems requiring expanded digital I/O capacity benefit from the A2247A’s modular architecture. Test configurations demanding multiple parallel digital channels, instrument control interfaces, or distributed signal switching leverage the four available expansion slots. Integration into automated test equipment (ATE) platforms and measurement systems with evolving I/O requirements is typical.
– Compatibility & Integration
The A2247A integrates directly with Agilent and Keysight platforms utilizing the DIO-I BUS protocol. The module mounts within compatible chassis or rack enclosures as a standalone expansion device. DIO-I BUS module interoperability allows connection of vendor-supported digital I/O cards and compatible peripheral devices across all four slots.
