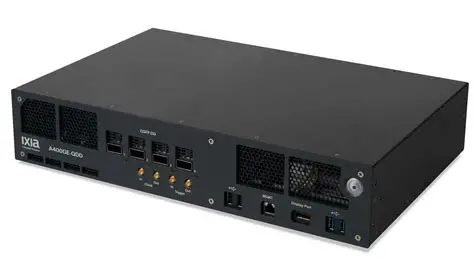

Agilent/Keysight A400GE-QDD

The Keysight A400GE-QDD is a compact, high-performance test system designed for validating the Bit Error Rate (BER) and Forward Error Correction (FEC) performance of 400 Gigabit Ethernet (400GE) electronics. This system is instrumental for engineers and labs involved in testing chips, optical transceivers, and port electronics, providing a dedicated solution for qualifying BER on 400GE interfaces. It offers a system-level view of BER and FEC performance across all lanes in real-time, enabling rapid issue identification.

### Technical Specifications

**Core Functionality:**
* **Layer 1 BERT and KP4 FEC Testing:** Provides comprehensive testing for Bit Error Rate (BER) and Forward Error Correction (FEC) performance.
* **400GE Interface Support:** Designed to validate communications devices and hardware ports utilizing the 8x56Gb/s electrical interface with PAM4 encoding, compliant with IEEE 802.3bs and IEEE 802.3cd standards.
* **Multiple Speed Configurations:** Supports various Ethernet speeds, including 1x400GE, 2x200GE, 4x100GE, and 8x50GE.

**Performance and Accuracy:**
* **Real-time System View:** Offers a system-wide view of BER and FEC statistics across all lanes simultaneously.
* **Rapid Testing:** Enables BER and FEC performance measurement in minutes rather than hours.
* **Error Detection:** Capable of detecting bursty and thermal errors over time through KP4 FEC symbol bit error distribution analysis.
* **FEC Codeword Analysis:** Includes FEC codeword bit-error density distribution analysis (the “FEC tail”) for detailed symbol error performance.
* **56Gb Electrical Lane Signaling:** Features 56Gb electrical lane signaling per port, facilitating the identification of problems within minutes.
* **High-Latency Measurement Resolution:** Offers 0.625 ns resolution at 400GE speeds and 1.25 ns at 200GE speeds.

**User Interface and Software:**
* **KiOS Software:** Provided with the Layer 1 BERT 400GE test software, KiOS, a browser-based single-page application (SPA) that simplifies setup and testing.
* **Intuitive GUI:** The web browser UI, supported by Google Chrome, ensures fast and simple BER and FEC testing.
* **Automated Reporting:** Facilitates the quick generation of PASS/FAIL test reports using user-defined tolerances and limits.

**Connectivity and Compatibility:**
* **QSFP-DD MSA Compliance:** Compatible with QSFP-DD MSA compliant optical transceivers.
* **Optical Transceiver Support:** Supports various optical transceiver types, including 400GBASE-DR4, 400GBASE-FR4, 400GBASE-SR8, and QSFP56, with specified power consumption limits.
* **Copper Cable Media:** Supports 400GBASE-CR8 passive copper Direct Attached Cables (DAC) up to 3 meters in length.
* **Host and Module Compliance Boards:** Optional host and module compliance boards, cables, and adapter bundles are available to simplify connections to BERT analyzers and development boards.

**Upgradability and Scalability:**
* **Field Upgrades:** Supports field upgrades to enhance system capabilities, such as expanding from a 2-port to a 4-port configuration or adding RS-544 FEC test capability.
* **Interconnection with M8040A:** Can be upgraded for interconnection and synchronization with Keysight’s M8040A High-Performance BERT analyzer for advanced characterization and compliance testing.

### Physical Characteristics
* **Form Factor:** Compact, benchtop system, with the option for rackmount installation.

### Compatibility
* **IEEE Standards:** Compliant with IEEE 802.3bs and IEEE 802.3cd for 400GE interfaces.
* **Optical Transceivers:** Compatible with QSFP-DD MSA compliant optical transceivers.
* **Copper Cables:** Compatible with passive copper Direct Attached Cables (DAC) up to 3 meters.
* **BERT Analyzers:** Designed for interoperability with Keysight M8040A High-Performance BERT analyzer.
