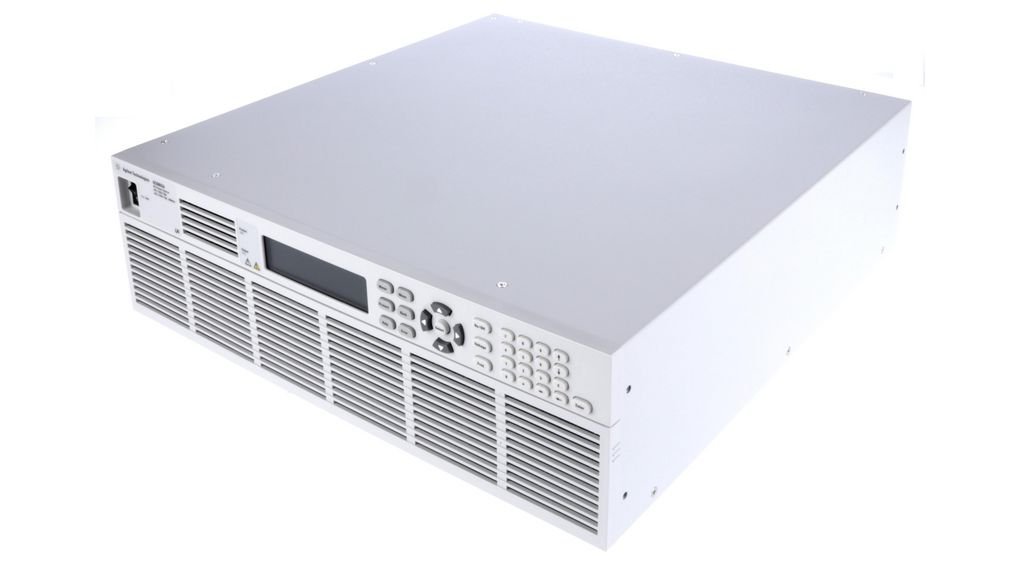

Agilent/Keysight AC6803A

The Agilent/Keysight AC6803A is a 2000 VA single-phase AC power source engineered for product development, quality control, and compliance testing. It simulates global AC power conditions across 40 Hz to 500 Hz with adjustable voltage and frequency settings, delivering clean, reliable output. The instrument supports AC coupled, DC coupled, or AC+DC coupled output modes independently of the coupling configuration, enabling flexible test scenarios. Front-panel and programmatic interfaces provide intuitive access to setup parameters and measurement data.

– Technical Specifications

• Power Output: 2000 VA
• Voltage Range (AC Mode): 0–135 V (Low Range) / 0–270 V (High Range)
• Voltage Range (DC Mode): 1.4–190 V (Low Range) / 2.8–380 V (High Range)
• Frequency Range: 40 Hz to 500 Hz
• RMS Current (AC Mode): 20 A @ 135 V / 10 A @ 270 V; 5 A @ 135 V or 2.5 A @ 270 V (general rating)
• Peak Current: 60 A (Low Range) / 30 A (High Range)
• DC Output Power: 400 W (Low Range) / 800 W (High Range)
• Power Factor: 0 to 1 (leading or lagging)
• Voltage Accuracy: 0.3% of full scale / 0.25% of full scale
• Frequency Accuracy: ±0.02%
• Input: 100–120 Vrms or 200–240 Vrms, 50 Hz or 60 Hz (auto-detected 90–132 Vrms / 180–264 Vrms)
• Input Frequency Range: 47 Hz to 63 Hz
• Input Current: ≤8 A @ 100 V / ≤4 A @ 200 V; ≤6.7 A @ 120 V / ≤3.5 A @ 230 V

– Key Features

• Multiple output coupling modes: AC, DC, or AC+DC independent of output configuration
• Wide frequency coverage for global power standard simulation
• Dual voltage ranges optimize for high-current or high-voltage applications
• LAN/LXI Core and USB connectivity for local and remote control
• Optional GPIB and analog interface board support

– Operating Environment

• Operating Temperature: 0 to 40 °C
• Operating Humidity: 20% to 80% RH (non-condensing)
• Storage Temperature: −10 to 60 °C
• Storage Humidity: ≤90% RH (non-condensing)

– Compatibility & Integration

Rack mounting kit AC68RAC3 supports the AC6801A, AC6802A, and AC6803A models.
