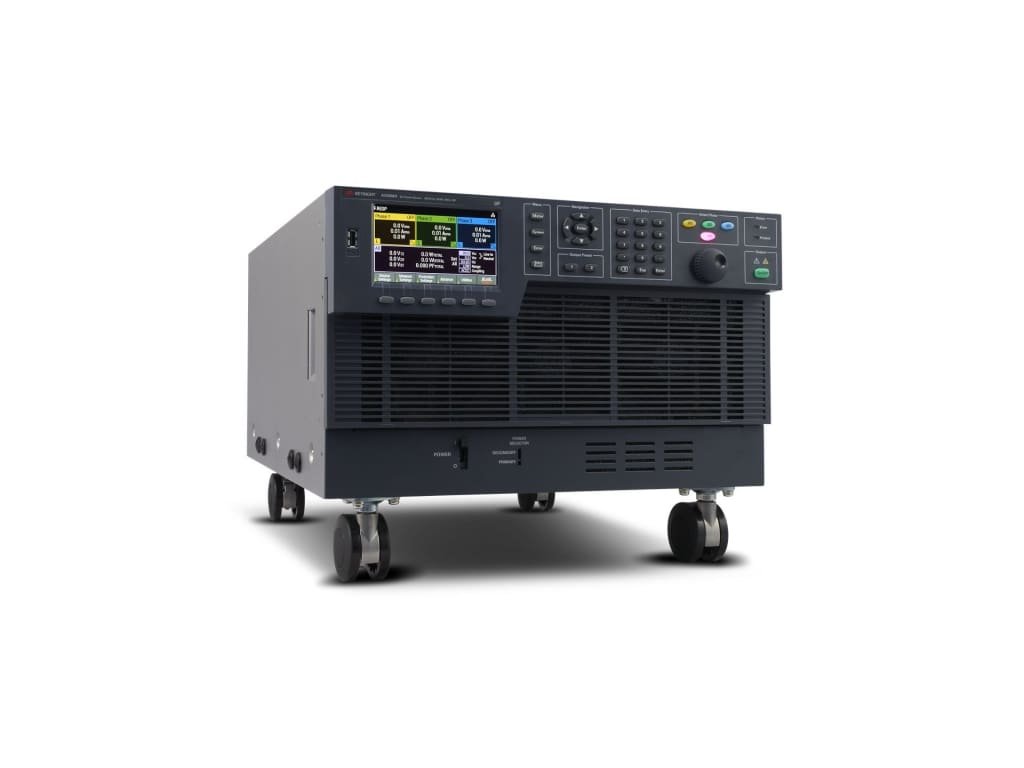

The Keysight AC6906H is a 6 kVA three-phase AC power source engineered for rigorous testing of electronic devices across R&D, manufacturing, and quality control environments. It delivers stable, accurate AC power with output voltage up to 320 Vrms (AC) and 452 V (DC), operating at frequencies from 1 Hz to 5 kHz. The instrument combines power sourcing with integrated measurement—multimeter, harmonic analyzer, and power analyzer functions—enabling both stimulus and verification in a single platform.
– Technical Specifications
Power Output
• Total power: 6 kVA
• AC voltage: up to 320 Vrms (high range); 160 V (low range)
• DC voltage: up to 452 V (high range); 226 V (low range)
• Frequency range: 1 Hz to 5 kHz (L models); up to 5 kHz (standard)
• Output configurations: single-phase, single-phase three-wire, three-phase four-wire
Current Output
• RMS current: 60 A / 30 A or 20 A / 10 A (configuration-dependent)
• Current derates when output voltage is between 100–160 VAC or 200–320 VAC
• Current at 1 Hz: 70% of rated value
Measurement Capabilities
• Voltage and current: AC, DC, AC plus DC, peak voltage and current
• Power analysis: real, apparent, and reactive power; power factor; crest factor
• Harmonic analysis: amplitude and phase up to 50th harmonic; total harmonic distortion (THD)
– Key Features
• Operating modes: AC, DC, and AC plus DC
• Built-in tests: power line disturbance, output sequencing, waveform generation (sine, peak-clipped, flat curve)
• Protection: over/undervoltage, current protection, output inhibit
• Programmable soft start/stop control
• Analog and digital control interfaces
• Connectivity: LAN (LXI core), USB, GPIB
• Remote operation via PathWave BenchVue software for test automation and data logging
– Typical Applications
• Avionics equipment testing at 400 Hz, 800 Hz, and up to 5 kHz (RTCA DO-160, MIL-STD-704 compliant)
• Electronic device validation across manufacturing and quality control
• Pre-compliance testing per IEC 61000-4 standards
– Compatibility & Integration
Input power options: 180–235 V, 3-phase AC, 50/60 Hz (AC6906H/200) or 380–480 V, 3-phase AC, 50/60 Hz (AC6906H/400). Supports test automation and remote configuration through LXI, USB, and GPIB connectivity.
