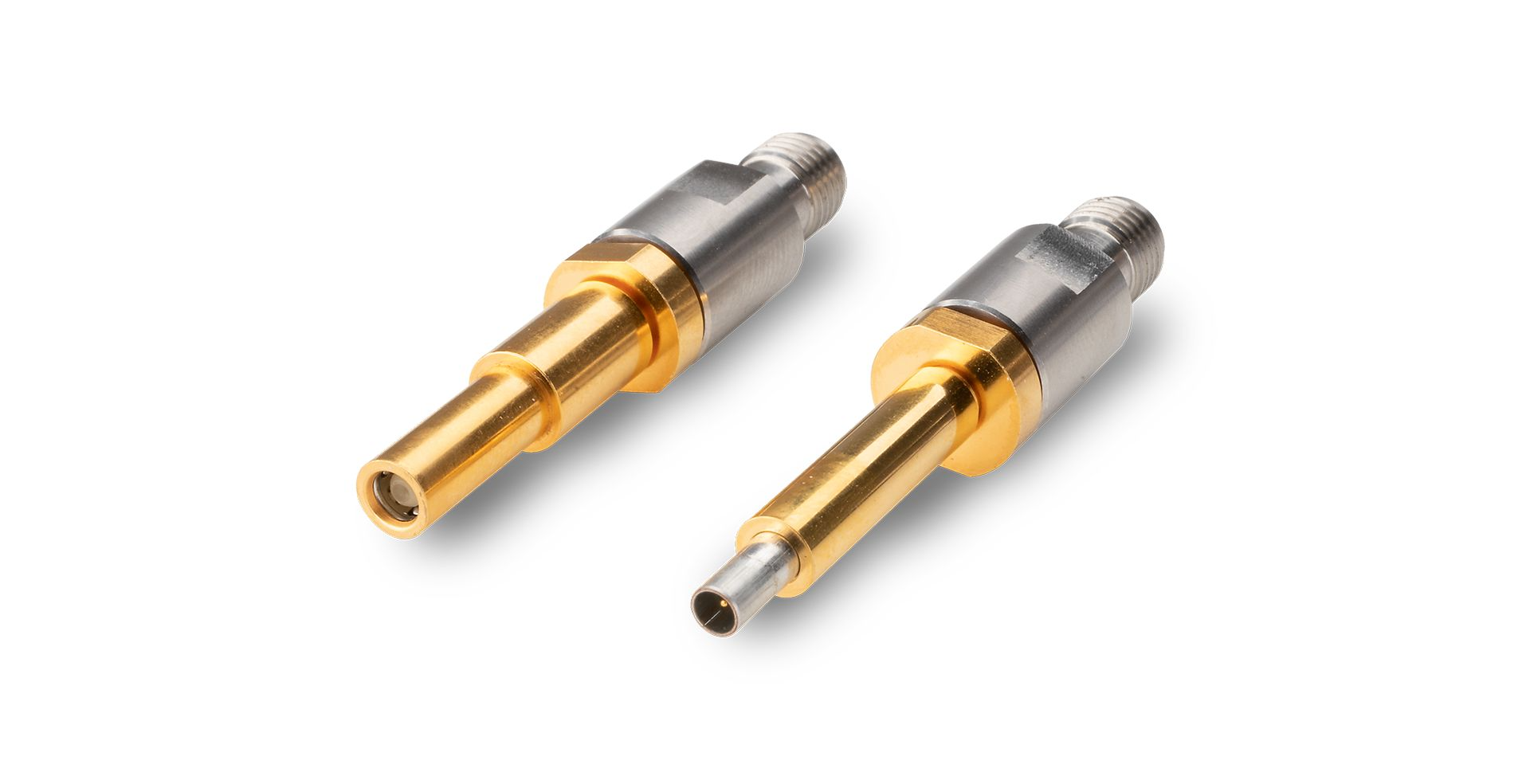

The Agilent/Keysight AE6963A is an automotive adapter that bridges RMC (Rosenberger MATE-AX) connectors to RPC-2.92 interfaces, enabling high-speed data transmission across automotive test environments. Engineered for multi-gigabit Automotive Ethernet and MIPI A-PHY/ASA standards, this compact adapter connects automotive MDI interfaces with precision and reliability across the full DC to 20 GHz bandwidth.
– Technical Specifications
• Frequency Range: DC to 20 GHz
• Input Connector: RMC (Rosenberger MATE-AX)
• Output Connector: RPC-2.92 (intermateable with 2.92, 3.50, SMA, and K connectors)
– Key Features
• Compact form factor optimized for automotive test configurations
• High-speed connectivity supporting multi-gigabit data rates
• Intermateable RPC-2.92 output accommodates 2.92, 3.50, SMA, and K connector families
• Dedicated RMC input for direct automotive MDI interface connection
• DC to 20 GHz bandwidth for broadband signal integrity
– Typical Applications
• Multi-gigabit Automotive Ethernet testing
• MIPI A-PHY and ASA testing across all gears and speed grades
• Automotive MDI interface characterization and validation
• High-speed data transmission in automotive measurement scenarios
– Compatibility & Integration
The RPC-2.92 output connector is fully intermateable with 2.92, 3.50, SMA, and K connector standards, providing flexibility in test system integration. The RMC input connector directly interfaces with automotive MDI connectors, eliminating the need for additional intermediary adapters in automotive Ethernet and MIPI A-PHY measurement chains.
