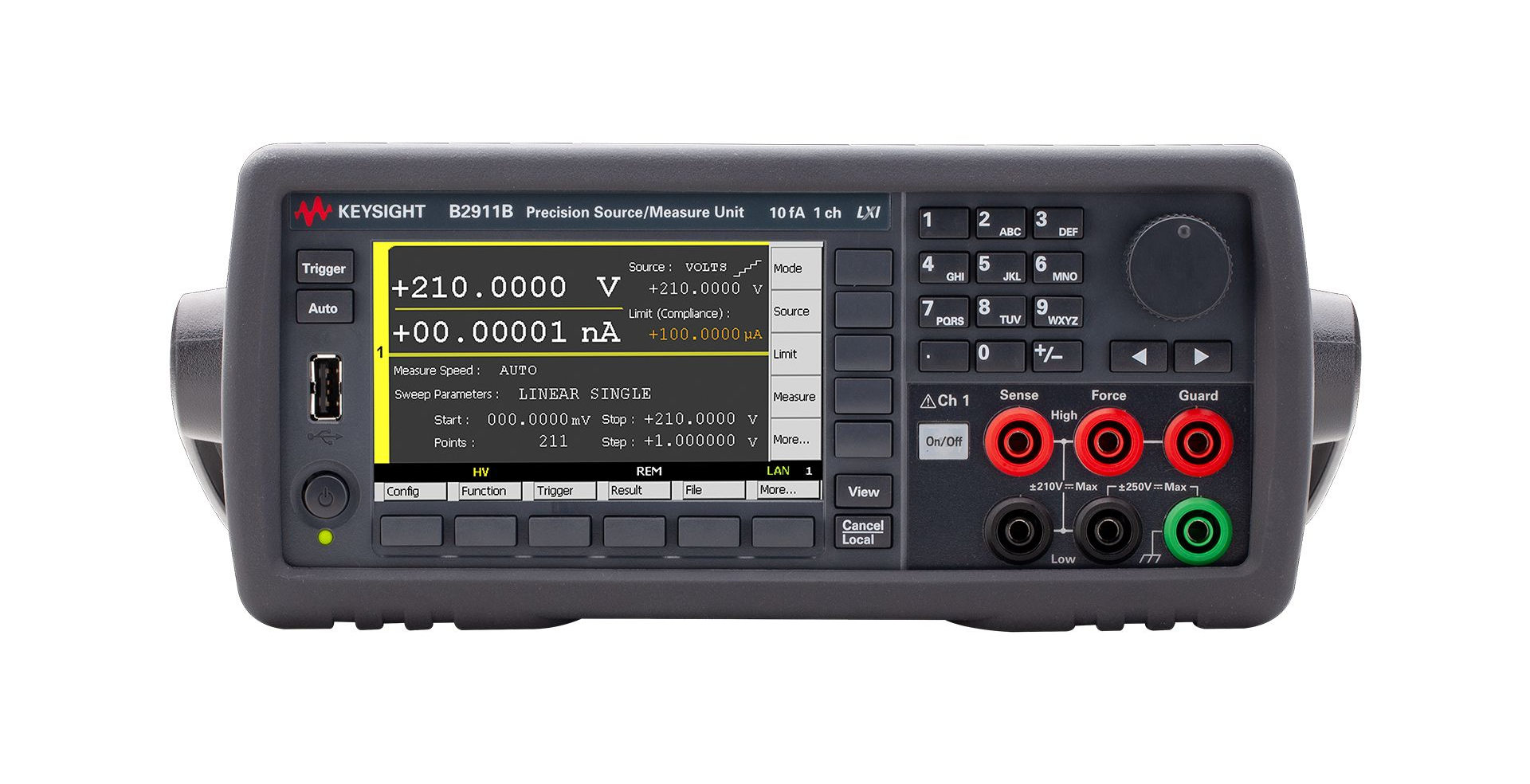

The Keysight B2911B is a precision 1-channel source/measure unit (SMU) delivering integrated 4-quadrant sourcing and measurement in a single compact instrument. It sources up to ±210 V and ±10.5 A pulsed (±3 A DC) while measuring with 6½-digit resolution down to 10 fA and 100 nV. Built-in sweep and arbitrary waveform generation with up to 100,000 levels, 4-wire Kelvin measurement capability, and sampling to 100,000 Sa/s enable fast, accurate characterization of semiconductors, passives, optical components, and emerging technologies without external instrumentation.
– Technical Specifications
• Voltage Output: ±210 V maximum
• Current Output: ±3 A DC / ±10.5 A pulsed
• Output Power: 31.8 W
• Source Resolution: 10 fA / 100 nV minimum
• Measurement Resolution: 10 fA / 100 nV minimum
• Resolution: 6½ digits
• Sampling Rate: Up to 100,000 Sa/s (10 μs minimum interval)
• Resistance Range: 2 Ω to 200 MΩ
• Buffer Memory: 100,000 measured values
• 4.3-inch Color LCD Display: Graphical and numerical view modes
– Key Features
• Integrated arbitrary waveform generator with linear, logarithmic, and list sweep modes
• 4-wire (Kelvin) measurement eliminates lead-resistance errors in low-voltage applications
• Built-in data buffering captures transient behavior and enables fast parametric testing
• Multiple connectivity: GPIB, LAN, dual USB 2.0 (Host/Device), and digital I/O
• Graphical web interface for PC-less operation via LAN
• Supports SCPI commands, IVI-C, and IVI-COM drivers
• Compatible with BenchVue, PathWave BenchVue, EasyEXPERT, LabVIEW, and Visual Studio
– Typical Applications
• Semiconductor device characterization: diodes, LEDs, laser diodes, FETs, transistors, ICs
• Passive component testing: resistors, varistors, thermistors, switches
• Optical devices: photodiodes, laser diodes
• Materials and nanotechnology characterization
• Organic electronics: OLEDs
• Renewable energy: solar cells, batteries
• Power management: linear regulators and LDOs
• DC bias and power sourcing for circuit functional test
– Compatibility & Integration
Operates on 90–264 V AC, 47–63 Hz. Weighs 6 kg; footprint 260 mm (W) × 480 mm (D) × 180 mm (H). Full software integration through Keysight ecosystem and third-party driver support.
