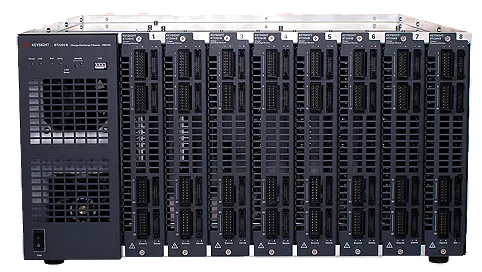

Agilent/Keysight BT2203B

The Keysight BT2203B is an 8-slot charge-discharge mainframe engineered for Li-Ion cell formation and lifetime cycling validation. Operating from 208 VAC 3-phase input power, this platform accommodates up to eight BT2204B or BT2205A modules and supports 256 cells or channels per chassis. Channel current is configurable from ±6 A to ±800 A depending on module selection and paralleling configuration, with maximum voltage rated at 6.0 V per channel. The mainframe executes charge, discharge, pre-charge, rest state, and DC internal resistance (DCIR) measurement routines across up to 256 programmable sequences, each containing up to 50 steps. Real-time monitoring includes voltage, current, power, Amp*Hours, Watt*Hours, ΔV/Δt, ΔI/Δt, ΔV, and ΔI. Integrated probe-check verification and customizable stop limits protect cells during formation and cycling. Regenerative power capabilities enhance system efficiency. Control interfaces include USB and LAN (LXI Core). The BT2203B scales from compact cell testing using BT2204B modules (32 channels, ±6.25 A per channel, up to ±200 A with paralleling) to high-current applications via BT2205A modules (2 channels, ±100 A per channel, up to ±800 A with full paralleling).

– Technical Specifications

• Input Power: 208 VAC, 3-phase
• Mainframe Slots: 8
• Maximum Channels: 256 cells/channels per chassis
• Maximum Voltage: 6.0 V per channel
• Configurable Current Range: ±6 A to ±800 A (module and configuration dependent)
• Test Functions: Charge, discharge, pre-charge, rest state, DC internal resistance measurement
• Programmable Sequences: Up to 256 sequences with up to 50 steps each
• Monitoring Parameters: Voltage, current, power, Amp*Hours, Watt*Hours, ΔV/Δt, ΔI/Δt, ΔV, ΔI
• Control Interfaces: USB, LAN (LXI Core)

– Key Features

• Probe-check connection verification with customizable charge/discharge stop limits
• Regenerative power for improved efficiency
• Modular architecture supporting BT2204B (32 channels) and BT2205A (2 channels) modules
• Channel paralleling capability for scaled current outputs

– Typical Applications

• Li-Ion cell formation and validation
• Battery lifetime cycling and degradation studies
• High-current prismatic and pouch cell testing

– Compatibility & Integration

Part of the BT2200 Series Cell Formation and Lifetime Cycler Solution. Operating and service manuals, platform datasheets, and configuration guides available for the BT2200 Series.
