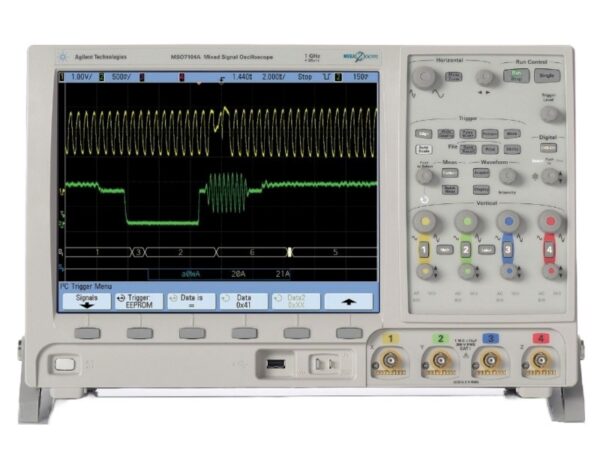

Agilent / Keysight DSO7014A Oscilloscope: 100 MHz, 4 analog channels

The Agilent/Keysight DSO7014A is a 100 MHz, 4-channel digital storage oscilloscope engineered for signal capture, analysis, and troubleshooting in electronic design and validation. It delivers fast waveform updates and deep memory acquisition to reliably capture infrequent events and complex signal behavior, supporting both analog measurement and serial protocol decode workflows.

– Technical Specifications

• Bandwidth: 100 MHz
• Analog Channels: 4
• Sample Rate: Up to 2 GSa/s
• Acquisition Memory: 8 Mpts (MegaZoom III)
• Display: 12.1″ XGA with 256 intensity levels
• Waveform Update Rate: Up to 100,000 waveforms/sec
• Vertical Resolution: Up to 12 bits (high-resolution mode)
• Automatic Measurements: 23 functions including mean, min, max, standard deviation, and count
• Waveform Math: FFT, subtract, multiply, integrate, square root, differentiate
• Triggering: Edge, edge then edge, pulse width, pattern, OR, rise/fall time, Nth edge burst, runt, setup & hold, video, USB
• Serial Decode: I2C, SPI, CAN, LIN, RS-232/UART, I2S (with optional application packages)
• Connectivity: LXI Class C compliant; AutoProbe interface with automatic attenuation recognition and active probe power

– Key Features

• Signal Visibility: Large XGA display with 256 intensity levels resolves subtle details and transient anomalies. High update rate captures glitches and infrequent events.
• Deep Memory Acquisition: 8 Mpts MegaZoom III enables extended time records without sample-rate or measurement compromise, essential for complex waveform analysis.
• Advanced Analysis Tools: FFT and waveform math functions paired with 23 automatic measurements accelerate signal characterization and failure diagnosis.
• Serial Protocol Support: Optional decode packages for I2C, SPI, CAN, LIN, and RS-232/UART enable embedded system and communication interface debugging.
• Probe Integration: AutoProbe interface automatically configures attenuation and supplies power to active probes.

– Typical Applications

• Embedded system debugging and validation
• Serial communication protocol analysis
• Complex waveform characterization
• Transient and glitch capture
• Signal integrity testing

– Compatibility & Integration

LXI Class C compliance enables integration into automated test systems. Standard connectivity supports network-based control and remote access for distributed test environments.
