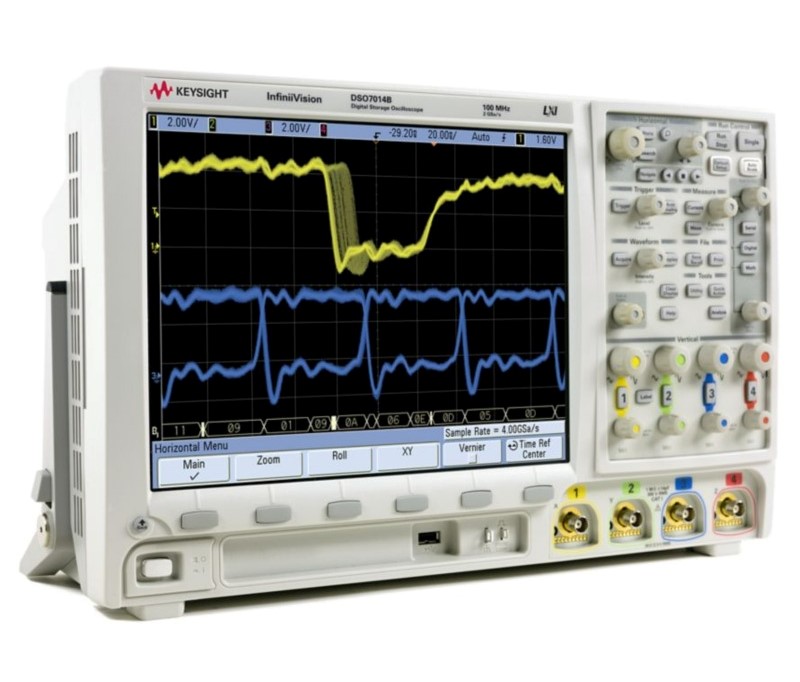

The Keysight DSO7014B is a 100 MHz, 4-channel digital storage oscilloscope engineered for signal analysis, debugging, and electronics testing in research and development environments. It delivers 2 GSa/s sample rate with 8 Mpts memory depth, enabling extended waveform capture without sacrificing acquisition speed. The 12.1-inch XGA display provides signal visibility for subtle details and infrequent events. A 100,000 wfms/s waveform update rate accelerates identification of intermittent faults.
– Technical Specifications
• Bandwidth: 100 MHz
• Analog Channels: 4
• Sample Rate: Up to 2 GSa/s
• Memory Depth: 8 Mpts
• Waveform Capture Rate: Up to 100,000 wfms/s
• Vertical Resolution: Up to 12 bits (High Resolution mode)
• Display: 12.1-inch XGA LCD
• Rise Time: 3.5 ns
• Input Impedance: 1 MΩ
• Maximum Input Voltage: 400 V
• Supply Voltage: 100–240 VAC
• Physical Dimensions: 454 mm (W) × 298 mm (H) × 220 mm (D)
• Weight: 13 lb
– Key Features
• Segmented memory for extended multi-event capture
• Serial data analysis with automatic search and navigation
• Mask testing for quality assurance validation
• Waveform math: subtract, multiply, integrate, square root, differentiate, and FFT
• 23 automatic measurements with statistics (mean, min, max, standard deviation, count)
• High Resolution mode filters sequential data for enhanced vertical resolution
• AutoProbe interface automatically configures probe attenuation and supplies active probe power
• FPGA debugging software
• Mixed Signal Oscilloscope (MSO) capability
– Typical Applications
• Electronics prototyping and validation
• Serial protocol debugging and analysis
• FPGA verification and troubleshooting
• Quality assurance and mask testing
• Signal integrity measurements in development environments
– Compatibility & Integration
• USB ports for data export, printing, and sharing
• LAN connectivity for remote printing, data storage, and collaboration
• AutoProbe interface for automatic probe detection and configuration
