Agilent / Keysight DSO7054A Oscilloscope: 500 MHz, 4 analog channels

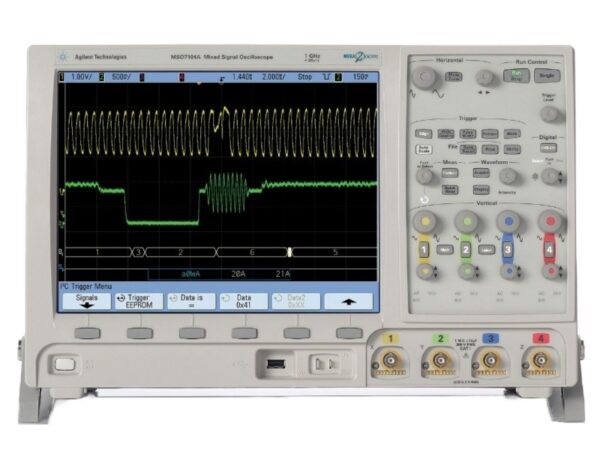

The Agilent/Keysight DSO7054A is a 500 MHz, 4-channel digital storage oscilloscope built for signal analysis, troubleshooting, and advanced waveform characterization. Operating at 4 GSa/s with 8 Mpts of MegaZoom III deep memory, it captures extended signal sequences at full sample rate without compromise. The 12.1″ XGA display with 256 intensity levels resolves subtle signal details, while an uncompromised waveform update rate of 100,000 waveforms/sec dramatically improves capture of infrequent events and transient glitches.

– Technical Specifications

• Bandwidth: 500 MHz
• Analog Channels: 4
• Sample Rate: 4 GSa/s
• Memory Depth: 8 Mpts (MegaZoom III)
• Display: 12.1″ XGA, 256 intensity levels
• Waveform Update Rate: 100,000 waveforms/sec
• Vertical Resolution: Up to 12 bits (real-time, single-shot)
• Physical Depth: 6.5 inches
• Weight: 13 pounds

– Key Features

• MegaZoom III technology sustains high sample rates over extended capture windows
• 23 automatic measurements eliminate manual computation
• Advanced triggering: edge, pulse width, pattern, CAN, duration, FlexRay, I2C, Nth Edge Burst, LIN, sequence, SPI, TV/video, and USB modes
• Mixed-signal triggering across analog and digital signals simultaneously
• Serial decode support for I2C, SPI, CAN, LIN, RS-232/UART, and I2S protocols
• Analysis functions: subtract, multiply, integrate, differentiate, and FFT
• Dedicated power analysis application package
• PC-based offline analysis of archived waveforms
• 12-bit vertical resolution in real-time single-shot acquisition
• Secure Environment Mode clears volatile memory on power-off

– Typical Applications

• Power supply design and verification
• Serial protocol debugging and analysis
• Transient and glitch detection
• Frequency-domain analysis via FFT
• Multi-channel signal correlation

– Compatibility & Integration

• Instrument drivers support LabVIEW, LabWindows/CVI, and Measurement Studio
• Communication via IEEE 488.2 (GPIB), USB, Ethernet, and LXI
• MATLAB® software available for custom measurement routines
• Compatible with broad probe and accessory ecosystems
• Embedded help system in multiple languages
