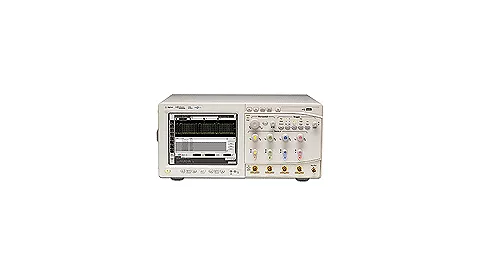

Agilent/Keysight DSO80804B

The Agilent/Keysight DSO80804B is an 8 GHz Infiniium series oscilloscope engineered for high-fidelity signal acquisition and analysis in telecommunications, semiconductor testing, and advanced R&D environments. This four-channel instrument delivers up to 40 GSa/s sampling across two channels and captures waveforms with exceptional signal integrity through noise floor, jitter floor, and trigger jitter specifications.

– Technical Specifications

Acquisition Performance
• Bandwidth: 8 GHz (upgradeable)
• Analog channels: 4
• Sample rate: 40 GSa/s (2 channels), 20 GSa/s (4 channels)
• Memory depth: 512 kpts standard; 2 Mpts optional; MegaZoom deep memory up to 2 Mpts at 40 GSa/s and 64 Mpts at 4 GSa/s
• Trigger jitter: <500 fs rms

Measurement Accuracy
• Noise floor: 294 µV @ 5 mV/div
• Vertical sensitivity: 5 mV/div to 1 V/div (hardware); expandable to 1 mV/div (software)
• Timebase range: 5 ps/div to 20 s/div

Display & Interface
• XGA display with 256 intensity levels
• AutoProbe interface for Agilent InfiniiMax and legacy active probes
• Gigabit Ethernet (10/100/1000 BaseT)
• LXI functional class C compliant

– Key Features

Signal integrity advantages include the industry's lowest noise floor, lowest jitter floor, lowest trigger jitter, and flattest frequency response. Deep memory options enable extended capture windows without sacrificing temporal resolution.

– Typical Applications

Serial data protocol debugging and validation across PCI-Express, DDR, FBD, SATA, SAS, Fibre Channel, DVI, HDMI, USB, FireWire, Ethernet, XAUI, Serial Rapid IO, CPRI, OBSAI RP3, and DisplayPort standards. Jitter characterization with EZJIT and EZJIT Plus analysis. Eye diagram measurement and transmit/receive validation for high-speed designs.

– Compatibility & Integration

Supports wideband spectrum analyzer software and includes noise reduction options. InfiniiScan event identification, My Infiniium customization framework, and user-defined functions enable tailored measurement workflows. High-speed serial data analysis with clock recovery and 8b/10b decoding integrated.
