Agilent / Keysight DSO91304A Infiniium High Performance Oscilloscope: 13 GHz

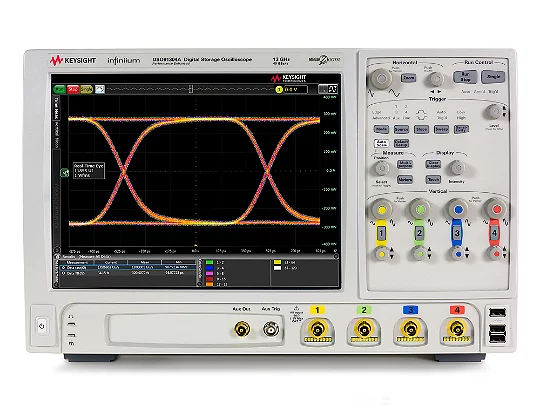

The Agilent/Keysight DSO91304A Infiniium is a 13 GHz bandwidth oscilloscope engineered for advanced signal analysis of high-speed digital buses and complex RF signals. Built on a Windows-based platform with 4 analog channels, 40 GSa/s sampling, and up to 1 Gpts memory depth, this instrument delivers noise performance and deep jitter analysis capabilities. The compact 15-inch display and modular architecture support third-party software integration for protocol analysis, compliance testing, and serial bus characterization.

– Technical Specifications

• Bandwidth: 13 GHz (bandwidth upgrade to 33 GHz available in select series)
• Analog Channels: 4
• Sample Rate: Up to 40 GSa/s across 2 channels; up to 80 GSa/s on 2 channels (V-Series)
• Acquisition Memory: Up to 1 Gpts standard; 0.5 Mpts on 2 channels, 0.25 Mpts on 4 channels (DSO80000 Series)
• Noise Floor: 1.73 mVrms at 50 mV/div— for this bandwidth class
• Vertical Resolution: Up to 12 bits for high-dynamic-range measurements
• Input Impedance: 50 ohm typical
• Input Coupling: AC, DC, GND
• Trigger Jitter: Less than 500 fs rms
• Vertical Range: 0.2 Vpeak-to-peak to 5.0 Vpeak-to-peak (calibration signal)

– Key Features

• 15-inch XGA high-definition display with optional 12.1-inch capacitive multi-touch interface
• Compact form factor: 9-inch depth, 26 lbs
• Deep jitter analysis with sub-500 fs rms trigger jitter
• 500 GB removable solid state drive standard
• USB 3.0 ports for high-speed data offload; dual-monitor support
• MSO models include 16 fully-integrated, time-aligned digital channels
• Windows-based OS with upgrade path available

– Typical Applications

• Serial bus analysis (SAS-2, DDR4, DDR3, PCI Express Gen 2)
• Protocol characterization (HDMI, XAUI)
• Jitter measurement and analysis (EZJIT, EZJIT Plus)
• High-speed digital and RF signal debug

– Compatibility & Integration

• Compatible with InfiniiMax II and InfiniiMax III/III+ probing systems
• Supports probes rated to 28 GHz and higher
• Accepts third-party application software for compliance, debug, and specialized analysis
• Ethernet connectivity for remote operation
• Suitable for Pollution Degree 2 environments
