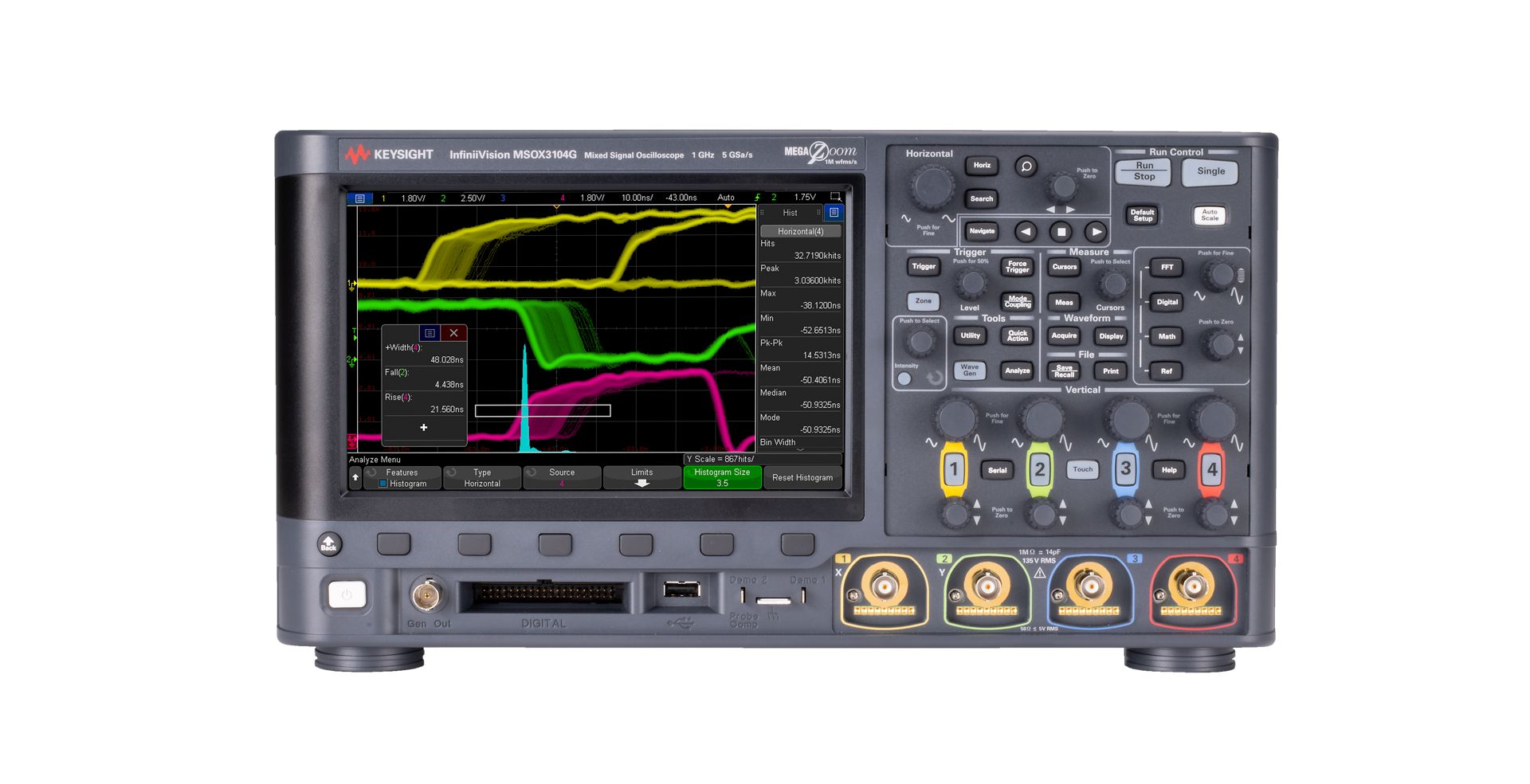

The Keysight DSOX3022G is a 200 MHz, 2-channel digital storage oscilloscope delivering real-time signal acquisition and analysis for design validation and troubleshooting. This InfiniiVision 3000G X-Series instrument combines a high-speed digitizer with integrated measurement and analysis tools, enabling engineers to capture complex signals at up to 5 GSa/s and update waveforms at 1,000,000 wfms/s. An 8.5-inch capacitive touch display provides intuitive navigation, while integrated protocol decoding covers I2C, SPI, UART/RS232/RS485, I2S, and USB PD standards.
– Technical Specifications
• Bandwidth: 200 MHz
• Analog channels: 2
• Maximum sample rate: 5 GSa/s (half channels), 2.5 GSa/s (all channels)
• Memory depth: 4 Mpts (half channels), 2 Mpts (all channels)
• Waveform update rate: 1,000,000 wfms/s
• Vertical resolution: 8 bits
• Input impedance: 1 MΩ ± 1% (14 pF), 50 Ω ± 1.5% (selectable)
• Input capacitance: 8 pF
• Rise time: ≤ 1.75 ns
• Display: 8.5-inch capacitive touch screen
– Key Features
• 7-in-1 instrument integration: oscilloscope, protocol analyzer, frequency response analyzer (Bode plots), 20 MHz function/arbitrary waveform generator, 3-digit DVM, 8-digit counter/totalizer
• Hardware-based serial protocol decoding and triggering (I2C, SPI, UART/RS232/RS485, I2S, USB PD)
• Zone Touch Trigger for signal-centric navigation
• Built-in 20 MHz waveform generator with arbitrary function capability
• Frequency response analysis (Bode plots) for swept gain and phase measurements
• Waveform and measurement histograms for jitter and noise analysis
• Mask limit and measurement limit testing
• Segmented memory for extended capture periods at elevated sample rates
– Typical Applications
Serial bus debugging and protocol verification, frequency response characterization, signal integrity analysis, embedded system development, power electronics testing.
– Compatibility & Integration
• USB Host: 2 × USB 2.0 ports (front and rear)
• USB Device: 1 × USB 2.0 (rear, USBTMC)
• LAN: 10/100Base-T
• VGA output for external displays
• GPIB: Optional (IEEE 488)
• Trigger output: BNC connector
• PathWave BenchVue Oscilloscope Software included for PC control and offline analysis
• Dimensions: 381 × 204 × 142 mm; Weight: 4.2 kg
