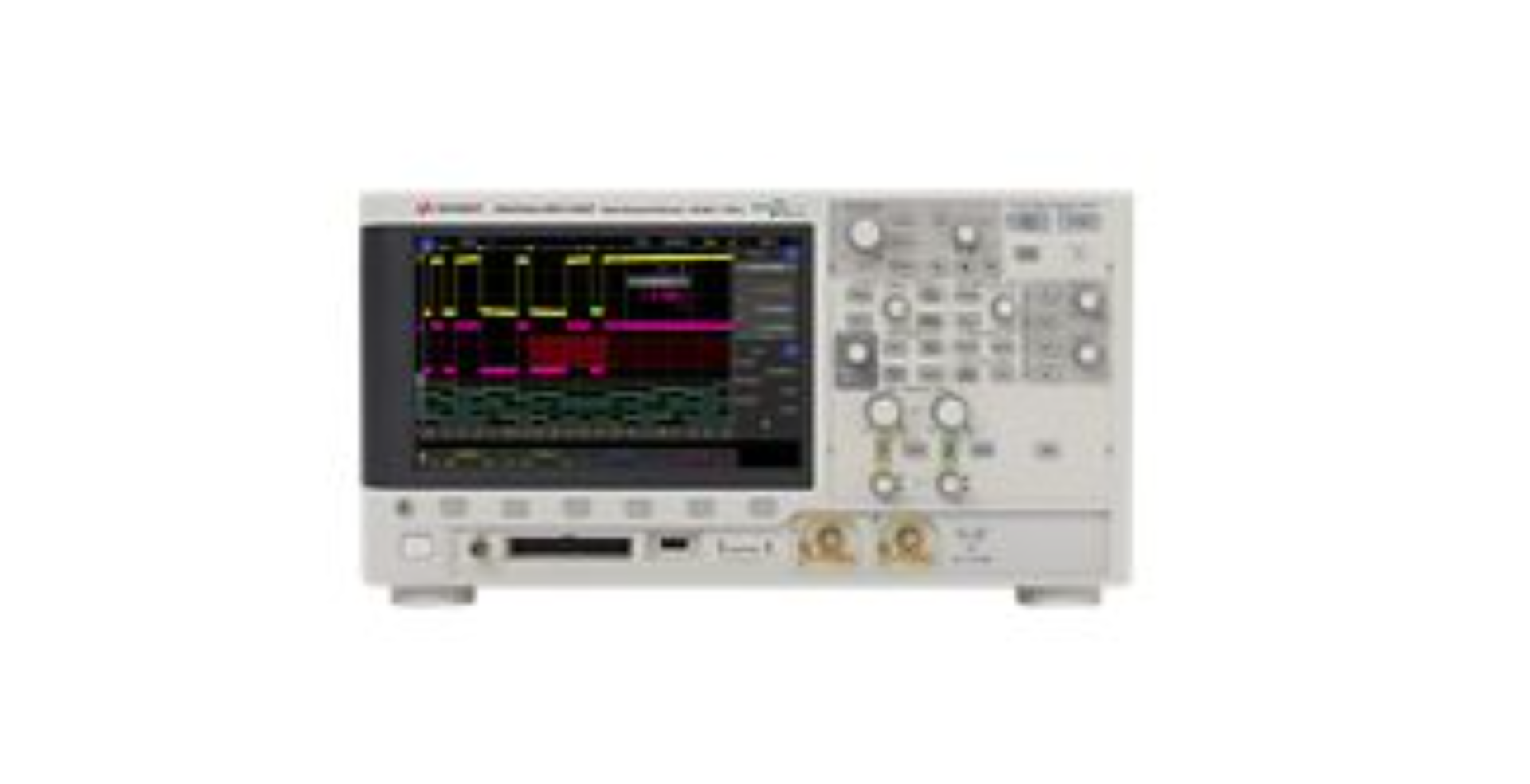

Agilent/Keysight DSOX3032T

The Keysight DSOX3032T is a 350 MHz, 2-channel digital storage oscilloscope built on the InfiniiVision 3000T X-Series platform. Designed for engineers and technicians who demand fast signal acquisition and intuitive control, this instrument delivers 1,000,000 waveforms per second update rate and 4 Mpts of memory depth for detailed transient capture and analysis. The 8.5-inch capacitive touchscreen enables rapid navigation and documentation, while Zone touch triggering isolates signal events through simple rectangular box selection on the display.

The DSOX3032T functions as a 6-in-1 instrument ecosystem. Beyond oscilloscope operation, it incorporates a function generator, digital voltmeter, logic analyzer capability (via optional MSO upgrade), and protocol analysis functions. Standard math operations—add, subtract, multiply, FFT, differentiation, and integration—are built-in. Optional advanced math extends functionality to Ax+B operations, measurement trending, and logic bus analysis.

– Technical Specifications

• Bandwidth: 350 MHz
• Analog Channels: 2
• Waveform Update Rate: 1,000,000 waveforms/sec
• Memory Depth: Up to 4 Mpts
• Display: 8.5-inch capacitive touch screen
• Included Probes: One N2843A 500 MHz 10:1 passive probe per analog channel

– Key Features

• Zone Touch Triggering: Draw a rectangular region directly on screen to isolate and trigger on specific signal events
• Deep Waveform Capture: Acquire extended signal sequences with 4 Mpts of memory
• Built-in Math: Standard operations (add, subtract, multiply, FFT, d/dt, integrate) with optional advanced math capabilities
• Integrated Instruments: Function generator, digital voltmeter, logic analyzer (optional), and serial protocol analysis
• Multi-language Interface: Supports 14 languages including English, Chinese, French, German, Japanese, Korean, Spanish, and Russian

– Upgradeability & Expansion

The DSOX3032T supports field upgrades to increase bandwidth, add digital channels via MSO conversion, integrate a 20 MHz arbitrary waveform generator, add a 3-digit voltmeter, and enable serial trigger and decode capabilities.

– Connectivity

Optional LAN/VGA or GPIB module installation enables external instrument control and automated data transfer.
