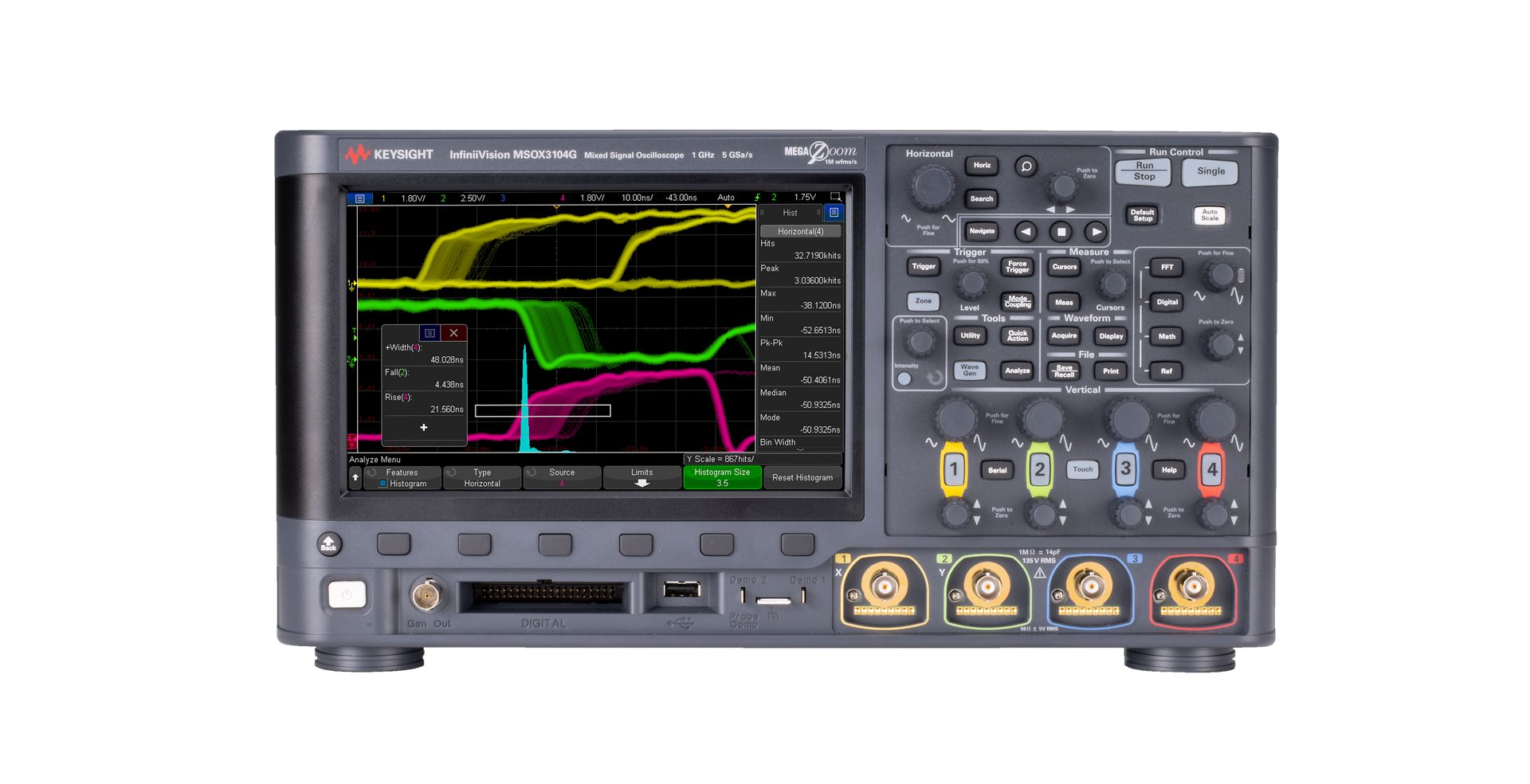

The Keysight DSOX3034G is a 350 MHz, 4-channel digital oscilloscope engineered for signal capture, isolation, and analysis of transient events in complex electronic designs. Built on the InfiniiVision 3000G X-Series platform, it delivers an exceptional waveform update rate of 1,000,000 waveforms/second through MegaZoom IV smart memory technology, enabling rapid detection of elusive glitches and anomalies. The 8.5-inch capacitive touch display supports gesture-enabled operation for intuitive instrument control.
– Technical Specifications
• Bandwidth: 350 MHz
• Analog Channels: 4
• Maximum Sample Rate: 5 GSa/s (half channels), 2.5 GSa/s (all channels)
• Memory Depth: 4 Mpts (half channels), 2 Mpts (all channels)
• Waveform Update Rate: Up to 1,000,000 waveforms/second
• Vertical Resolution: 8 bits
• Rise Time: ≤ 1 ns
• Input Impedance: 1 MΩ
• Input Capacitance: 8 pF
• Display: 8.5-inch capacitive touch gesture-enabled
• Dimensions: 381 mm × 204 mm × 142 mm
• Weight: 4.2 kg (9.3 lbs)
– Key Features
• Built-in 20 MHz function/arbitrary waveform generator
• Protocol trigger and decode: I²C, SPI, UART/RS232/RS485, I²S, USB PD standard; MIL-STD 1553, ARINC 429, CAN, CAN FD, LIN, SENT, CXPI, FlexRay available
• Hardware-enabled mask limit and measurement limit testing
• Frequency response analysis (Bode plots)
• Waveform and measurement histograms
• HDTV video analysis
• 8-digit counter and totalizer
• 3-digit voltmeter
• Secure erase
• LAN, VGA, USB host, and USB device connectivity
– Typical Applications
Debug and validate designs spanning aerospace/defense, automotive, power supply characterization, and USB 2.0 applications. Optional software bundles support specialized protocol analysis and automated measurements across these domains.
– Compatibility & Integration
Ships with four passive 500 MHz, 10:1 probes (N2843A), localized power cord, documentation CD, and calibration certificate. Mixed-signal capabilities require optional digital channel upgrade.
