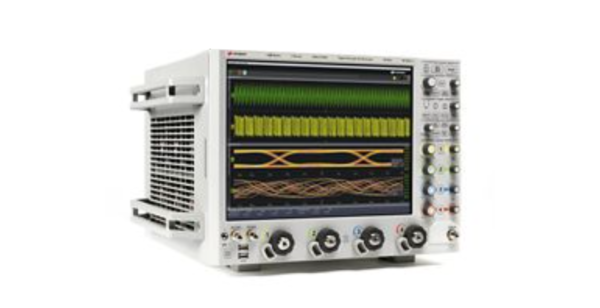

Agilent/Keysight DSOZ334A

The Keysight DSOZ334A is a 33 GHz real-time oscilloscope engineered for high-speed signal analysis and characterization. Built on the Infiniium Z-Series platform, this four-channel instrument captures complex transient phenomena at 80 GSa/s and resolves rise times as fast as 5 ps. Memory depth reaches 2 Gpts per channel, enabling extended waveform records for detailed signal integrity assessment. The 15.4-inch capacitive touchscreen and quad-core i7 processor with hardware acceleration support simultaneous execution of up to 20 measurements, 16 functions, and 16 FFTs. Advanced triggering modes—edge, glitch, and auxiliary—address diverse protocol and signal detection requirements. Bandwidth is field-upgradable to 63 GHz, making the DSOZ334A suitable for SERDES designs operating at 32 Gbit/s and beyond.

– Technical Specifications

• Bandwidth: 33 GHz (upgradable to 63 GHz)
• Sample Rate: 80 GSa/s across 4 channels
• Memory Depth: 2 Gpts (50 Mpts per channel standard)
• Rise Time Resolution: 5 ps minimum
• Analog Channels: 4
• Display: 15.4-inch capacitive touchscreen
• Processor: Quad-core i7 with hardware acceleration
• Measurements: Up to 20 simultaneous; 16 functions; 16 FFTs concurrently

– Key Features

• noise and jitter measurement floor for precision characterization
• InfiniiMode analysis enables differential, single-ended, and common-mode measurements without probe reconnection
• Dual-monitor video output for extended workspace configuration
• Auxiliary, trigger, and time-base reference outputs for system synchronization
• Edge, glitch, and advanced trigger modes with auxiliary trigger input

– Typical Applications

• High-speed SERDES design validation (32 Gbit/s and greater)
• Signal integrity and timing analysis
• Jitter and noise floor characterization
• Multi-channel transient capture and waveform analysis

– Compatibility & Integration

• Remote control via LAN, USB, and GPIB
• Ethernet 10/100/1000 Base-T connectivity
• USB 3.0 and USB 2.0 hi-speed host/device ports
• Programmable via My Infiniium customization
• Compatible with EZJIT Complete, Serial Data Analysis, N8900A Offline analysis software, and BenchVue Basic app
• PathWave Calibration Advisor support
