Agilent/Keysight E1403B

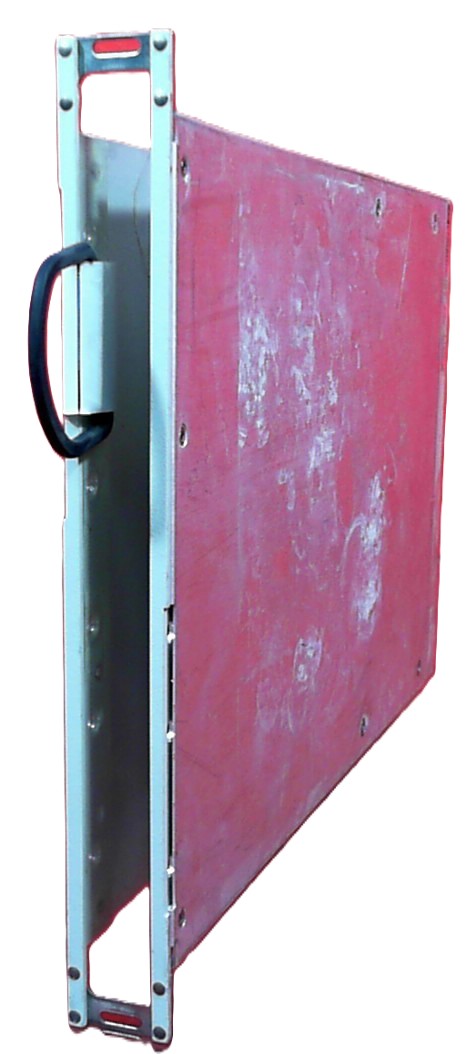

The Agilent/Keysight E1403B is a VXI carrier module that enables integration of A- or B-size VXI or VME modules into C-size VXI mainframes. Operating as a slave-only device, it provides a fully buffered P1 connector extension and cannot function in Slot 0 or with bus masters. Available in 1-slot (standard) or 2-slot wide (Option 002) configurations, the E1403B accommodates any number of adapters within a C-size mainframe, making it ideal for system expansion and legacy VXI platform integration.

– Technical Specifications

• Module Type: VXI Carrier Module
• Module Width: 1-slot (standard) or 2-slot (Option 002)
• Functionality: Slave-only operation
• Connector: Single P1 with full buffering and extension capability
• VXI Size Compatibility: Accepts A- or B-size VXI or VME modules
• Mainframe Compatibility: C-size VXI mainframes

– Key Features

• Fully buffered P1 connector extension ensures signal integrity across module boundaries
• Flexible width options support diverse system layouts and space constraints
• Slave-only architecture simplifies integration without bus mastering requirements
• Supports scalable configurations with multiple adapters in a single mainframe

– Typical Applications

The E1403B addresses system integration challenges in VXI test platforms requiring form-factor adaptation. Engineers deploying legacy A- or B-size modules in newer C-size mainframe environments benefit from its buffered extension capability. Multi-adapter configurations enable modular test system expansion while preserving existing module investments.

– Compatibility & Integration

Designed exclusively for C-size VXI mainframes, the E1403B accepts any A- or B-size VXI or VME module. Slot placement restrictions—prohibition of Slot 0 and bus master operation—ensure proper VXI bus protocol compliance. Slave-only operation streamlines system design and eliminates bus arbitration complexity in mixed-size module configurations.
