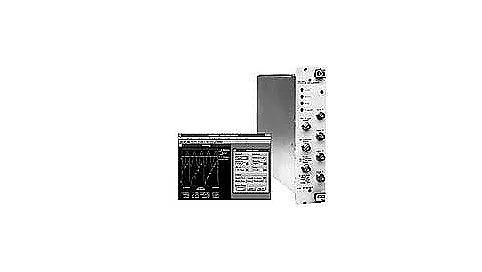

Agilent/Keysight E1426A

The Agilent/Keysight E1426A is a VXIbus digitizing oscilloscope module that delivers four-channel, high-speed data acquisition in a compact C-size, 2-slot form factor. Operating at 500 MHz bandwidth across all channels with 8-bit vertical resolution, this message-based module employs random repetitive sampling (equivalent time sampling) to achieve fine time resolution down to 20 ps. The E1426A provides programmable vertical sensitivity from 8 mV to 40 V full scale with ± 0.4% accuracy, selectable 1 MΩ or 50 Ω input impedance, and AC/DC coupling. It accommodates input signals up to ± 250 V at 1 MΩ impedance with offset capability to ± 250 V.

– Technical Specifications

• Channels: 4 with 500 MHz bandwidth per channel
• Vertical Resolution: 8-bit A/D converter
• Vertical Sensitivity: 8 mV to 40 V full scale with ± 0.4% accuracy
• Vertical Offset: ± 250 V range with ± (0.5% offset + 2% voltage) accuracy
• Input Impedance: Selectable 1 MΩ or 50 Ω
• Input Coupling: AC, DC
• Maximum Input Voltage: ± 250 V (at 1 MΩ)
• Time Base Range: 2 ns to 50 s full scale
• Time Base Resolution: 20 ps
• Time Base Accuracy: ± (0.2% range + 0.005% delta-t + 150 ps)
• Digitizing Rate: 20 MSa/s
• Shared Memory: 64 Kbytes RAM for waveform storage
• Input Capacitance: 7 pF nominal

– Key Features

• Random repetitive sampling (equivalent time sampling) for high-bandwidth signal capture
• Dual 8-bit A/D converters at 20 MSa/s
• Two-slot VXIbus module with ECL backplane triggering
• Output connectors: Probe comp, Cal, Trig out

– Command Sets & Integration

• SCPI command support
• HP 54503A-compatible command set for program portability
• Compatible with HP 54551A ScopeView PC Software
• Probe compatibility with HP 54503A benchtop oscilloscope
