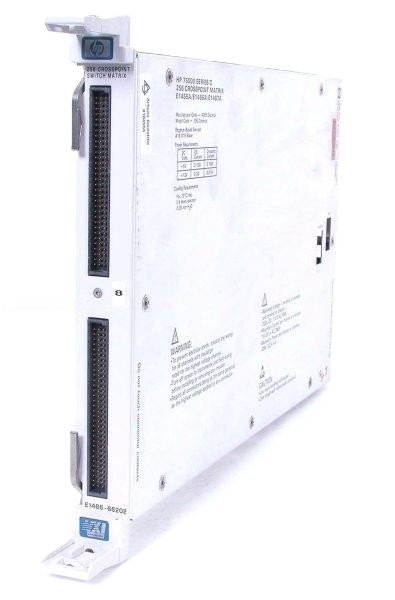

Agilent / Keysight E1467A 8 x 32 Relay Matrix Switch

The Keysight E1467A is a C-size, 1-slot VXI relay matrix switch delivering 256 two-wire crosspoints in an 8×32 configuration. Built on latching armature relays and register-based control, this module executes non-blocking signal routing with sub-millisecond switching speed. The E1467A scales through matrix expansion via chaining cables, enabling larger configurations—three units create an 8×96 matrix, and a full 13-slot mainframe supports up to 3072 crosspoints. QUIC terminal blocks provide field-configurable topology selection.

– Technical Specifications

• Matrix Configuration: 8 rows × 32 columns, 256 two-wire crosspoints
• Switching Speed: <1 ms
• Relay Type: Latching armature relays
• Configuration: Non-blocking
• Terminal Blocks: QUIC design; topology determined by terminal block selection
• Module Class: Register-based, C-size, 1-slot VXI

Crosstalk (50 Ω system, worst-case paths):

Within card:
• Closed-to-closed: −72 dB (<10 kHz), −51 dB (<100 kHz), −33 dB (<1 MHz)
• Open row-to-row: −91 dB (<10 kHz), −59 dB (<100 kHz), −43 dB (<1 MHz)
• Open row-to-column: −85 dB (<10 kHz), −64 dB (<100 kHz), −47 dB (<1 MHz)
• Open column-to-column: −92 dB (<10 kHz), −71 dB (<100 kHz), −54 dB (<1 MHz)

Module-to-module (8×64 configuration):
• Closed-to-closed: −72 dB (<10 kHz), −51 dB (<100 kHz), −33 dB (<1 MHz)
• Open row-to-row: −74 dB (<10 kHz), −53 dB (<100 kHz), −38 dB (<1 MHz)
• Open row-to-column: −92 dB (<10 kHz), −72 dB (<100 kHz), −56 dB (<1 MHz)
• Open column-to-column: −82 dB (<10 kHz), −64 dB (<100 kHz), −50 dB (<1 MHz)

– Key Features

• Scalable Architecture: Supports expansion to larger matrices via optional chaining cable (e.g., E1466-80002) or expansion terminal blocks (Options 201/211)
• Compatible Core: Shares switch card topology with E1465A and E1466A models for flexible system integration
• Multi-Protocol Control: GPIB, RS-232, and VXIplug&play interfaces
• Software Support: LabVIEW, Agilent VEE, MATLAB, and C/C++
• Relay State: Relays open at power-up

– Typical Applications

• Automated test systems requiring high-density signal routing
• Data acquisition and multiplexing
• General-purpose two-wire switching and matrix expansion

– Compatibility & Integration

The E1467A integrates into standard VXI mainframes and chains with E1465A and E1466A modules. Matrix expansion degrades crosstalk and bandwidth; worst-case specifications apply to expanded configurations.
