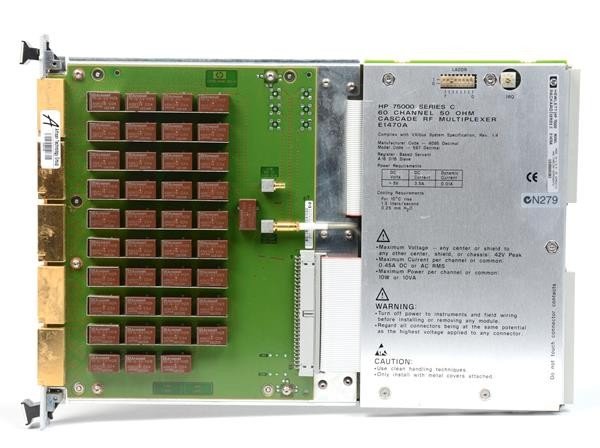

Agilent / Keysight E1470A 60-Channel 50 Ohm; RF Multiplexer

The Agilent/Keysight E1470A is a VXIbus C-size RF multiplexer module delivering high-density signal routing for automated test systems. It integrates twenty 3:1 multiplexer configurations that cascade to form larger architectures—from a single 60:1 multiplexer to multiple parallel configurations such as 6:1 or 9:1. Up to two expander modules can be controlled by a single RF multiplexer, extending functionality to eighteen 4:1 multiplexer banks. All channels open upon power-up, ensuring safe initialization.

– Technical Specifications

• Module Type: VXIbus C-size, register-based slave device
• Channel Capacity: Configurable up to 60 channels
• Multiplexer Architecture: Twenty 3:1 configurations per module; cascadable to 60:1 or mixed topologies
• Bandwidth: 500 MHz (3:1 configuration); 200 MHz (30:1); 100 MHz (60:1)
• Characteristic Impedance: 50 Ω
• Insertion Loss: <0.25 dB at <10 MHz; <0.6 dB at <100 MHz; <3 dB at <500 MHz (3:1)
• Isolation (Terminated): –80 dB at 10 MHz; –60 dB at 100 MHz; –50 dB at 200 MHz; –40 dB at 500 MHz
• VSWR (3:1): <1.4 at <100 MHz; <1.45 at <200 MHz; <1.7 at <500 MHz
• Closed Channel Resistance: <1.5 Ω typical (AC)
• Switching Time: 15 to 30 milliseconds typical
• Relay Type: Non-latching armature
• Relay Life: 5 × 10⁶ operations (no load); 10⁵ operations (10 W RF rated load)
• Maximum Voltage: 30 V (center/shield-to-center, shield, or chassis)
• Maximum Current: 450 mA AC RMS per channel
• Maximum Power: 10 VA AC per channel
• Physical: 10 lbs; 12 × 10 × 8 inches

– Key Features

• Cascadable multiplexer configurations for flexible test architectures
• 50 dB isolation at 200 MHz
• Register-based control for deterministic switching
• Multiple simultaneous cascade combinations supported
• Low insertion loss across DC to 500 MHz band

– Typical Applications

• Multi-channel RF signal routing
• Automated test equipment (ATE) systems
• High-frequency device characterization
• Signal switching in VXI-based instrumentation

– Compatibility & Integration

VXIbus C-size form factor integrates into standard VXI chassis systems. Register-based programming enables straightforward control within automated measurement environments.
