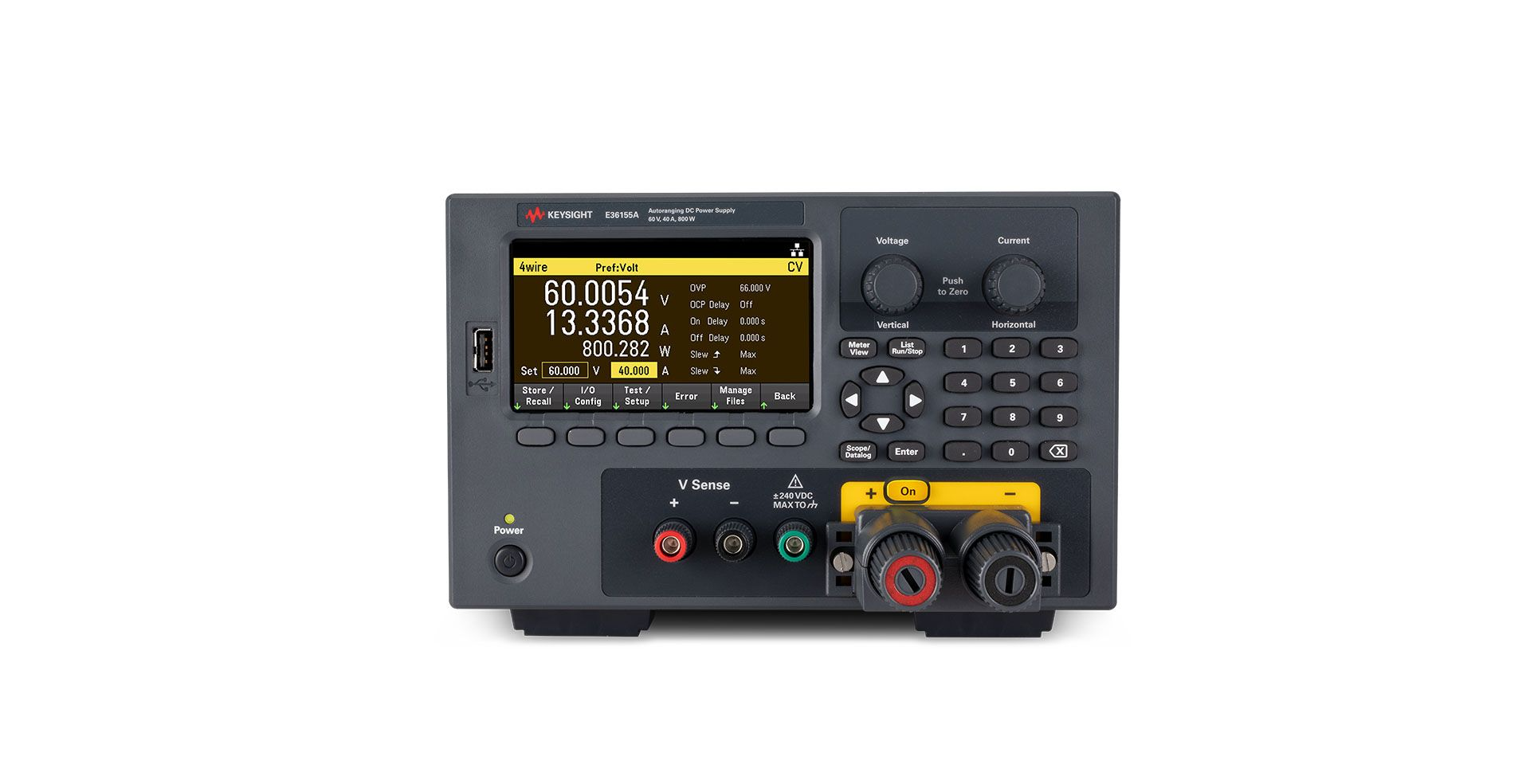

The Keysight E36155A is an 800 W programmable DC power supply built for benchtop and automated test environments. This single-output instrument delivers 0–60 V and 0–40 A with autoranging architecture, enabling flexible V-I combinations within its maximum power envelope. Programming and readback accuracy of 0.03% + 10 mV on voltage and 0.1% + 10 mA on current ensure precise control and measurement. Output noise remains low at less than 50 mV peak-to-peak and 5 mV rms (20 Hz to 10 MHz), with excellent line and load regulation throughout the operating range.
– Technical Specifications
• Output: 0–60 V, 0–40 A, 800 W maximum
• Programming Accuracy: Voltage 0.03% + 10 mV; Current 0.1% + 10 mA
• Readback Accuracy: Voltage 0.03% + 10 mV; Current 0.1% + 10 mA
• Ripple & Noise: < 50 mV p-p normal mode; < 5 mV rms (20 Hz to 10 MHz)
• Peak Power Handling: Up to 2400 W (3X rating) for ≥ 7 ms
• Remote Sensing: 2-wire and 4-wire modes available
– Key Features
• Autoranging capability optimizes voltage and current combinations at rated power
• Adjustable slew rate controls inrush current and protects sensitive loads
• Built-in voltage and current measurement with high-range capability
• Data logging with configurable interval sampling for continuous monitoring
• Output sequencing and synchronization via digital I/O
• LIST mode programming support
• Over-voltage, over-current, and over-temperature protection with thermal sensors
• Adjustable current limits enable safe output configuration
• Scope View option captures time-domain transient behavior and dynamic pulse response with threshold-based triggering
• Arbitrary Waveform Generator option provides configurable dwell-time modulation
– Typical Applications
Device characterization, power supply validation, load transient testing, electromechanical component testing, high inrush current scenarios, and automated production test.
– Compatibility & Integration
Remote sensing compensates for lead-drop losses. Digital I/O supports output sequencing and external synchronization in multi-unit configurations.
