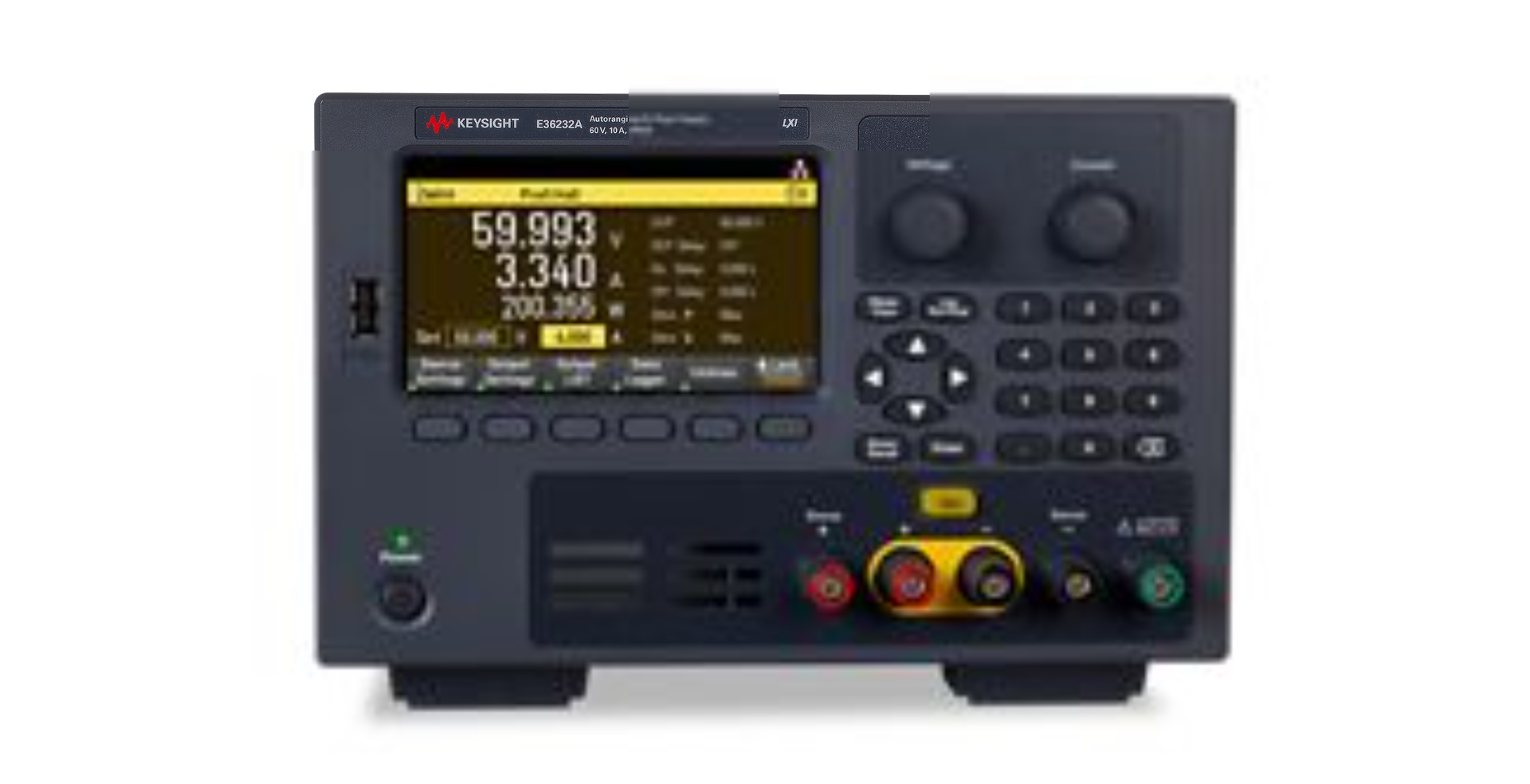

Agilent/Keysight E36232A

The Keysight E36232A is a 200 W programmable bench power supply delivering 0–60 V at 0–10 A with autoranging capability that maximizes current delivery across the entire voltage range. Single-output design provides precise voltage and current control with exceptional load and line regulation (better than 0.01%) and ultralow noise performance, making it ideal for R&D, manufacturing test, and device characterization. The 4.3-inch color LCD display with color-coded controls and binding posts enables intuitive operation, while integrated over-voltage, over-current, and over-temperature protection safeguards test devices. Variable slew rate control manages inrush current for sensitive loads. Local 2-wire or remote 4-wire sensing modes optimize measurement accuracy and load regulation across bench and system configurations.

– Technical Specifications

Output Ratings
• Power: 200 W
• Voltage: 0–60 V
• Current: 0–10 A (autoranging)
• Load and Line Regulation: Better than 0.01%

Signal Quality
• Voltage Ripple & Noise: < 350 µVrms / 3.5 mV p-p (normal mode)
• Current Noise: < 1 mA rms

Programming & Readback Accuracy
• Voltage: ±0.03% + 8 mV
• Current: ±0.1% + 3 mA (standard); ±0.25% + 80 µA (low range, < 50 mA)

Input & Display
• Input Voltage: 100–240 VAC
• Display: 4.3-inch LCD color display

– Key Features

• Autoranging output delivers maximum current at all voltage settings
• Over-voltage, over-current, and over-temperature protection
• Variable voltage slew rate to control inrush current
• 4-wire remote sensing for improved load regulation and measurement accuracy
• Built-in data logger for time-based power measurement
• Output sequencing and LIST mode support
• Low-range current measurement for sub-100 mA resolution
• Thermal-controlled fan for reduced acoustic noise

– Interfaces & Integration

• USB-TMC and USB-CDC virtual COM ports (standard)
• LAN connectivity (LXI Core)
• GPIB optional (requires E363GPBU accessory)
• Rear output terminals for bench and system integration

– Typical Applications

Electronic device testing, power converter characterization, battery charging validation, and production verification of low-to-medium power circuits requiring precise voltage and current control with minimal noise.
