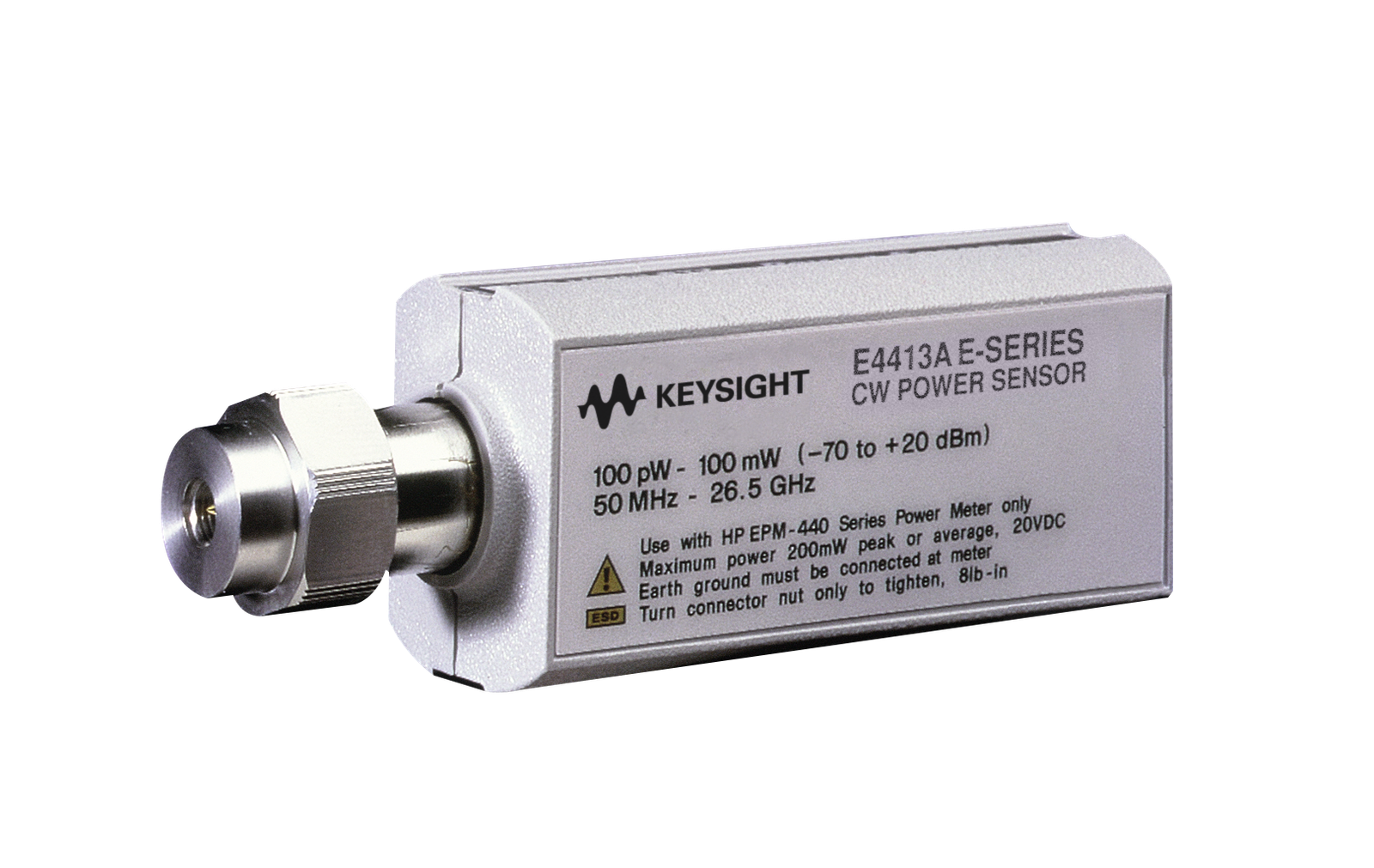

Agilent / Keysight E4413A Wide Dynamic Range Power Sensor, E-Series

The Agilent/Keysight E4413A is a diode-based CW power sensor delivering average power measurements across 50 MHz to 26.5 GHz with a 90 dB dynamic range. Operating from -70 dBm to +20 dBm (100 pW to 100 mW), it provides measurement speeds up to 400 readings per second and power linearity of ±3% at 25°C across its primary range. The sensor integrates calibration factors, linearity correction, and temperature compensation data in onboard EEPROM, enabling accurate measurements without external calibration lookup. Its compact form factor (102 mm × 30 mm × 38 mm) and APC-3.5mm connector make it suitable for benchtop and field deployment. The E4413A is optimized for CW and narrowband signals; amplitude-modulated, pulsed, or multi-tone signals may introduce measurement error.

– Technical Specifications

• Frequency Range: 50 MHz to 26.5 GHz
• Power Range: -70 dBm to +20 dBm (100 pW to 100 mW)
• Dynamic Range: 90 dB
• Measurement Speed: Up to 400 readings per second
• Power Linearity: ±3% (100 pW to 10 mW at 25°C); ±7% (100 pW to 10 mW over 0–55°C); ±4.5% (10 mW to 100 mW at 25°C); ±10% (10 mW to 100 mW over 0–55°C)
• Temperature Coefficient: ±0.15%/°C (typical maximum)
• SWR: 1.05 maximum at 50 MHz nominal; 1.19–1.26 across frequency bands to 26.5 GHz
• Connector: APC-3.5mm (male) with Type-N adapter included
• Dimensions: 102 mm L × 30 mm H × 38 mm W
• Weight: 0.18 kg

– Key Features

• Onboard EEPROM stores sensor-unique calibration and temperature compensation data
• High-frequency SWR performance minimizes signal reflection error
• NIST-traceable calibration support

– Compatibility & Integration

The E4413A integrates with EPM, EPM-P, and P-Series power meters, including E4418B, E4419B, E4416A, E4417A, N1911A, N1912A, N1913A, and N1914A. It operates with all 8480-series and E-series sensors.
