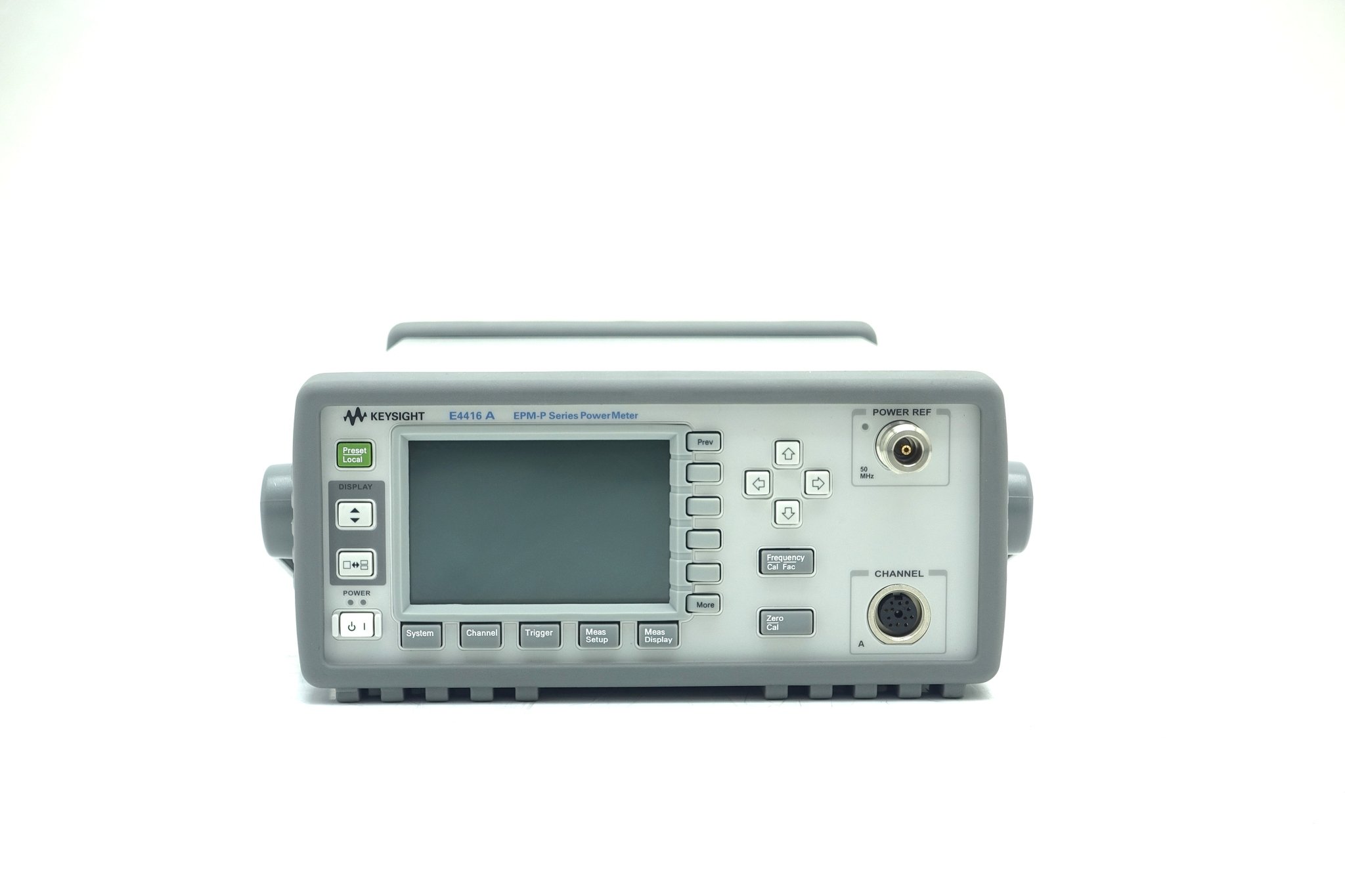

Agilent / Keysight E4416A EPM-P Series Single Channel Power Meter

The Agilent/Keysight E4416A EPM-P Series Single Channel Power Meter delivers high-performance RF and microwave power measurements for wireless communication standards and advanced RF testing. It measures peak power, average power, peak-to-average ratio, and time-gated power across complex modulation formats including TDMA, CDMA, and W-CDMA. The instrument operates at a continuous sampling rate of 20 MS/s with measurement speeds up to 1,000 corrected readings per second over GPIB. Its 5 MHz video bandwidth optimizes dynamic range for peak power measurement, with user-selectable High, Medium, Low, or OFF settings.

– Technical Specifications

Measurement Capabilities
• Peak power, average power, peak-to-average ratio, time-gated measurements
• TDMA, CDMA, and W-CDMA modulation format support
• 8 pre-defined wireless configurations: GSM, EDGE, NADC, iDEN, Bluetooth, IS-95 CDMA, W-CDMA, cdma2000
• Averaging over 1 to 1024 readings
• Sampling rate: 20 MS/s continuous
• Video bandwidth: 5 MHz
• Measurement speed: 1,000 corrected readings/second (GPIB, fast mode)
• Frequency range: 9 kHz to 110 GHz (sensor dependent)
• Power range: -70 dBm to +44 dBm (sensor dependent)

Interfaces & Trigger Specifications
• USB 2.0, Ethernet/LAN (LXI-C), GPIB
• External trigger: >2.0 V (high), 1 kΩ

– Key Features

• Extensive triggering for precise time-gated measurements
• Dynamic range up to 85 dB in average-only mode
• Optimized for E9320 peak and average power sensors

– Typical Applications

• Production testing of wireless devices
• Research and development in RF communications
• Burst and pulsed signal characterization

– Compatibility & Integration

Operates with E9320 peak/average power sensors (70 dB max., 85 dB average-only mode), E-series CW sensors (90 dB), E9300 average sensors (80 dB), 8480 series (50 dB), and N8480 series (55 dB) sensors.
