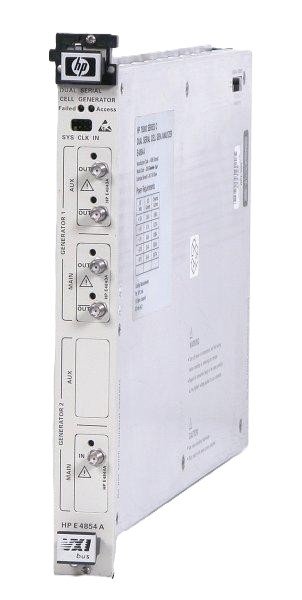

The Agilent/Keysight E4854A is a dual serial cell generator module that emulates burst-mode data for network transmission performance characterization. Deployed as a single-slot VXI component within the E4859A Serial Cell Generator and Analyzer System, it enables detailed analysis of transmission behavior under real network conditions, including proprietary cell formats.
This C-Size VXI module provides independent control over cell length, cell content, and cell timing for each of its two generators. Engineers can configure these parameters to simulate diverse network scenarios and validate system performance against varied data patterns and timing constraints.
– Technical Specifications
• Module Type: Dual Serial Cell Generator
• Form Factor: Single-Slot, C-Size VXI Module
• System Architecture: Component within E4859A Serial Cell Generator and Analyzer System
– Key Features
• Configurable cell length, content, and timing per generator channel
• Burst-mode data emulation for network characterization
• Support for proprietary cell formats
• Dual independent signal generation paths
– Typical Applications
• Network transmission performance validation under variable cell timing
• Characterization of system behavior with custom or proprietary data cell formats
• Burst-mode traffic generation within automated test systems
• Integration into multi-instrument ATE configurations
– Compatibility & Integration
The E4854A operates exclusively as a functional element of the E4859A Serial Cell Generator and Analyzer System. System-level compatibility and operational requirements are detailed in the E4859A documentation.
Product Status: Obsolete. Full support, repair, and calibration services remain available through Keysight.
