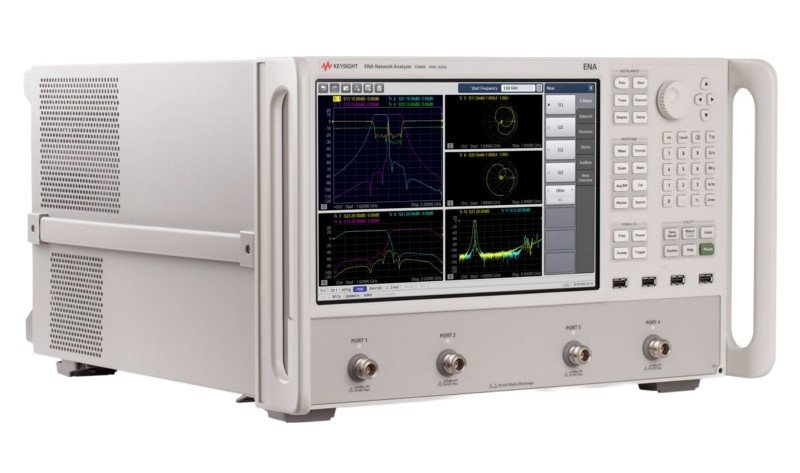

The Keysight E5080B ENA Vector Network Analyzer delivers high-performance RF and microwave measurements across multiple frequency bands from 9 kHz to 53 GHz (settable to 54 GHz on select models). Available in 2-port or 4-port configurations, the E5080B combines guaranteed dynamic range up to 152 dB with trace noise of 0.0005 dBrms and temperature stability for repeatable, production-grade results. Measurement speed reaches 2 ms for 201-point sweeps, enabling rapid device characterization in R&D and manufacturing environments.
– Technical Specifications
• Frequency range: 9 kHz to 4.5 GHz; 9 kHz to 6.5 GHz; 9 kHz to 9 GHz; 9 kHz to 14 GHz; 9 kHz to 18 GHz; 9 kHz to 20 GHz; 100 kHz to 26.5 GHz; 100 kHz to 32 GHz; 100 kHz to 44 GHz; 100 kHz to 53 GHz (settable to 54 GHz)
• Port configurations: 2-port or 4-port
• Dynamic range: Up to 140 dB or 152 dB
• Trace noise: 0.0005 dBrms
• Measurement speed: 2 ms for 201 points
• Operating environment: 25 °C ± 5 °C
– Key Features
• Electronic Calibration (ECal) support for single-connection two-port calibration
• Mechanical calibration kit compatibility
• Integrated DC sources
• Bias tees with internal support to 20 GHz
• Pulsed-RF measurement capability via hardware options E5080B-021 (first source) and E5080B-022 (second source on 4-port models) with application software S96025A
• Internal second source on 4-port configurations (Option 4×2)
• Spectrum analysis via integrated feature or software application S96090A (Option 09x)
• Scalar mixer/converter measurements with S96082A
• Vector mixer measurements with S96083A
– Typical Applications
Device characterization, filter and amplifier testing, passive component validation, pulsed-RF device measurements, and mixer analysis across R&D and manufacturing workflows.
– Compatibility & Integration
Shares measurement science, user interface, and SCPI command architecture with Keysight PNA and PXI series platforms, enabling consistent methodology across instrument families.
