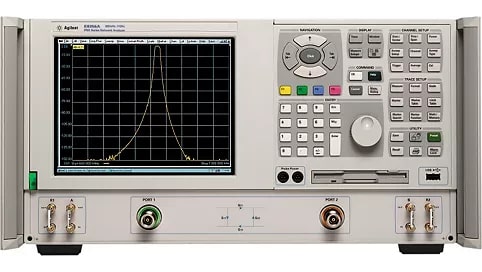

Agilent / Keysight E8357A 6GHz PNA Network Analyzer

The Agilent/Keysight E8357A is a 2-port PNA network analyzer operating from 300 kHz to 6 GHz, engineered for high-speed microwave component characterization in R&D and manufacturing environments. It delivers a maximum dynamic range of 125 dBm and output power to 10 dBm, enabling accurate S-parameter measurements of filters, amplifiers, antennas, and passive devices. The instrument combines exceptionally fast sweep speeds with low trace noise and supports segmented sweeps and limit-line testing for efficient pass/fail validation.

– Technical Specifications

• Frequency Range: 300 kHz to 6000 MHz (6 GHz)
• Ports: 2
• Maximum Dynamic Range: 125 dBm
• Maximum Output Power: 10 dBm

– Key Features

• Fast sweep speeds without performance compromise
• Segmented sweep capability for optimized test efficiency
• Low trace noise ensures measurement repeatability
• Pass/fail testing via limit lines
• Full two-port electronic calibration (ECal) with USB control of ECal modules
• Automated error correction delivers residual performance after calibration

– Typical Applications

• Filter, amplifier, and antenna characterization
• Impedance and time-domain analysis
• High-power amplifier measurements
• Mixer, converter, and tuner measurements using frequency-offset techniques
• In-fixture device testing
• Material properties measurement with compatible dielectric probe kits

– Connectivity & Integration

• USB, GPIB, LAN, serial, and parallel interfaces for test equipment interconnection
• Windows 2000-based graphical user interface
• Hardkey and drop-down menu operation
• Integrated automation for increased productivity
