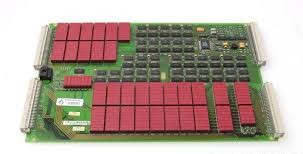

The Keysight E8793A is a 32-pin matrix module engineered for integration into Keysight TS-5000 series functional test systems. It delivers high-speed DC/AC measurements and high power handling capabilities, serving as a core component in automotive and complex electronic control module test environments such as the TS-5400 Series II Automotive Functional Test System.
– Technical Specifications
• Product Type: 32-Pin Matrix Module
• System Compatibility: Keysight TS-5000 Series, TS-5400 Series II Automotive Functional Test System
• Interfaces: TestExec SL, GPIB, VXI
• Measurement Capability: High-speed DC/AC measurements with high power handling
• Channel Density: Increases measurement channel density within compatible test platforms
– Key Features
• Multi-interface support enables integration with both legacy VXI-based platforms and modern PXI architecture
• Modular design allows configuration with complementary TS-5000 series components
• Supports both instrument-level control and direct pin-level switching operations
• Contributes to overall test system measurement density improvements
– Typical Applications
• Automotive electronic control unit (ECU) functional testing
• Complex multi-pin device characterization
• High-current and high-voltage DC/AC measurement setups
• Integrated automotive powertrain and body electronics verification
– Compatibility & Integration
The E8793A works with other TS-5000 series modules including the E8792A 32-Pin Matrix and Instrument Multiplexer Module, E8782A 24-Instrument 40-Measurement Matrix Card, E8783A 64-Pin Matrix Card, N9379A Multi-Channel Loadcard, and E6198A TS-5400 Series II Switch/Load Unit. System interconnection uses standard twisted-pair and DIN cables such as the E3751-61601 64-Conductor Twisted-Pair Cable and E3750-61608 96-Pin, 64-Conductor to 96-Pin DIN Cable.
