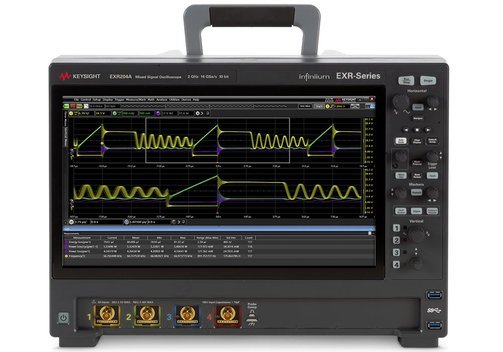

The Keysight EXR254A is a 2.5 GHz real-time oscilloscope with four analog channels sampling simultaneously at 16 GSa/s. This Infiniium EXR-Series instrument combines oscilloscope, logic analyzer, arbitrary waveform generator, frequency response analyzer, digital voltmeter, counter, and protocol analyzer functionality into a single platform. The 10-bit ADC delivers up to 16-bit resolution in high-resolution mode, achieving system ENOB of 9.0 bits with hardware filtering and noise as low as 43 µV. With 100 Mpts/channel standard memory (upgradeable to 400 Mpts/channel) and waveform update rates exceeding 200,000 wfm/s, the EXR254A supports demanding signal analysis workflows across RF, digital, and power electronics applications.
– Technical Specifications
• Bandwidth: 2.5 GHz (upgradeable)
• Analog Channels: 4
• Sample Rate: 16 GSa/s on all channels simultaneously
• Memory Depth: 100 Mpts/channel standard; upgradeable to 400 Mpts/channel
• ADC Resolution: 10 bits native; up to 16 bits in high-resolution mode
• System ENOB: 9.0 bits with hardware filtering; 8.1 bits standard
• Noise: 43 µV minimum
• Waveform Update Rate: > 200,000 wfm/s
• Display: 15.6-inch capacitive multi-touch, Full HD (1920×1080)
• Operating System: Windows 10
• Physical: 17.32 in. W × 9.06 in. L × 12.99 in. H; 30 lbs
– Key Features
• Integrated logic analyzer with 16 digital channels (optional)
• Arbitrary waveform generator rated 50 MHz
• Frequency response analyzer (Bode plotter) to 50 MHz
• Digital voltmeter (4-digit) and 10-digit counter standard
• Optional protocol analyzer support
• Over 50 voltage and timing measurements with trends and histograms
• Real-time eye diagrams and jitter decomposition
• Segmented memory and history mode
• FFT analysis and flexible three-stage triggering
• Fault Hunter for automatic signal evaluation against user-defined criteria
• Hardware-accelerated plotting
– Typical Applications
High-speed digital design verification, mixed-signal analysis, power integrity measurements, serial protocol debug, and frequency response characterization.
– Compatibility & Integration
Includes one N2873A 500 MHz passive probe per channel, keyboard, mouse, and Keysight I/O Libraries Suite. Supports external second monitor. Fully upgradeable post-purchase via software licenses.
