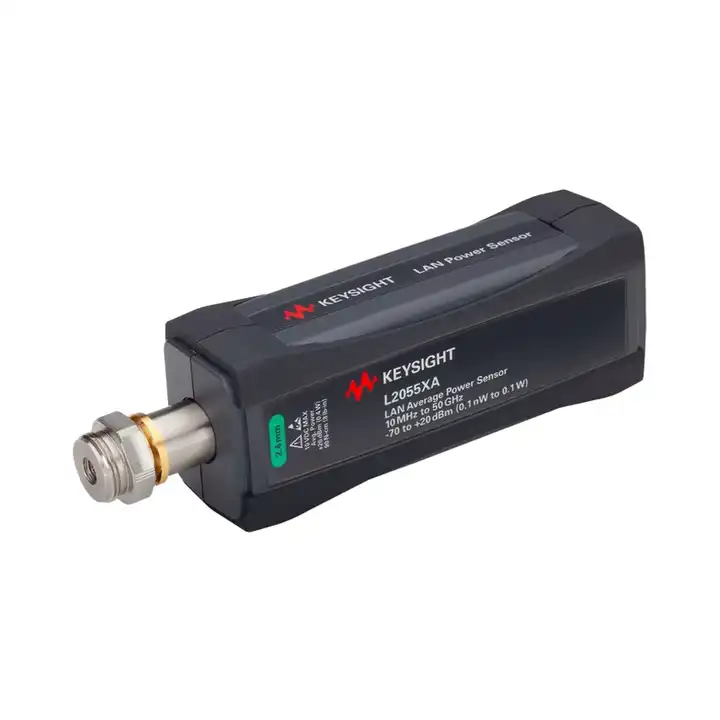

Agilent/Keysight L2055XA

The Keysight L2055XA is a LAN-connected average power sensor engineered for precision characterization of modulated RF signals across demanding test environments. This X-Series instrument delivers 50,000 readings/second measurement speed with a wide dynamic range spanning −70 dBm to +20 dBm (10 MHz–50 GHz), making it ideal for low-level signal detection and time-selective average power analysis.

– Technical Specifications

Measurement Performance
• Frequency range: 10 MHz to 50 GHz (standard); 10 MHz to 53 GHz with Option 053
• Power measuring range: −70 dBm to +20 dBm (10 MHz–50 GHz); −70 dBm to 0 dBm (>50 GHz to 53 GHz with Option 053)
• Measurement speed: 50,000 readings/second
• Variable sampling rate: 1M samples/second with 1M sample memory capacity
• Zero dead time measurement for uninterrupted pulse characterization
• Internal zero and automatic calibration reduce measurement uncertainty

Connectivity & Control
• Interface: LAN
• RF connector: 2.4mm male
• Built-in trigger input for external synchronization of low-level signals
• TTL trigger output on every measurement; supports daisy-chained sensor synchronization

– Key Features

• Average and time-selective average power modes with full dynamic range retention
• Wide dynamic range optimized for small-signal measurements
• Built-in presets for radar and wireless standards: DME, GSM, EDGE, WCDMA, WLAN, LTE
• BenchVue software license (BV0007B) included for instrument control and test automation

– Typical Applications

Characterization of modulated signals in wireless communications testing, radar signal analysis, and multi-carrier power measurement in production and R&D environments.

– Compatibility & Integration

Ships with power sensor, 5 ft USB cable, dual BNC-to-SMB trigger cables (50 Ω, 1.5 m), and calibration certificate. No SVHC substances as of January 17, 2023.
