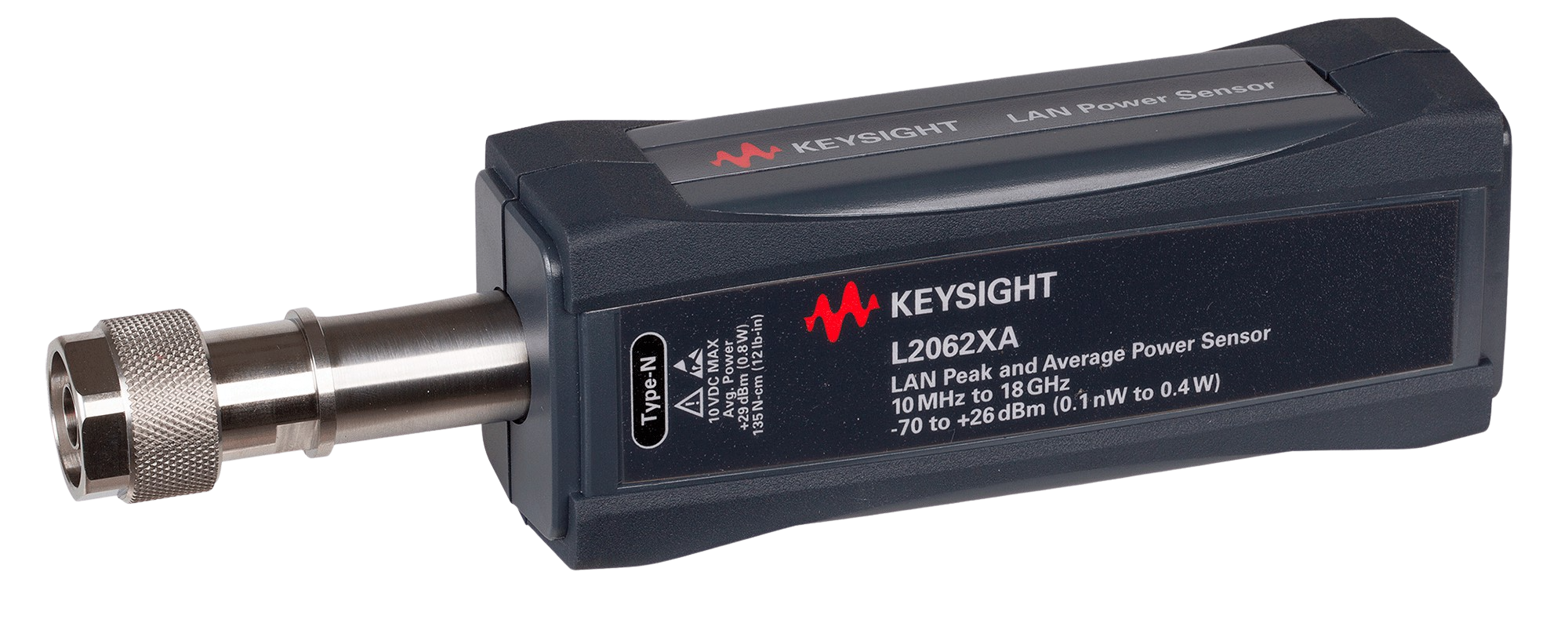

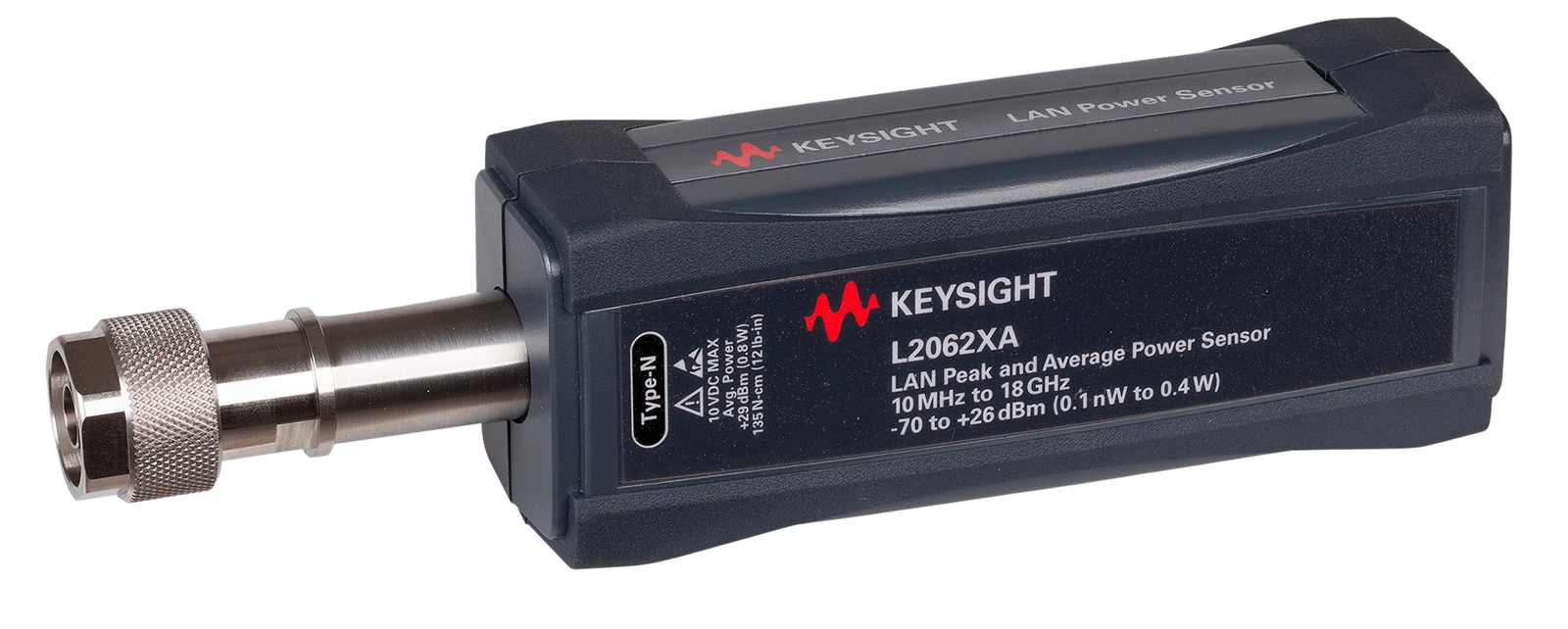

The Agilent/Keysight L2062XA is a LAN-connected power sensor that delivers peak and average power measurements across 10 MHz to 18 GHz with -70 dBm to +26 dBm dynamic range. Engineered for high-speed acquisition up to 50,000 readings/second and variable sampling to 1 MSa/s, this sensor captures continuous pulse trains with zero dead time. The instrument stores measurement data across 1 MB of onboard memory and supports both internal and external triggering. Internal zeroing and automatic calibration minimize measurement uncertainty without disconnecting from the device under test. PoE-powered over standard LAN connectivity, the L2062XA integrates with Keysight BenchVue software for automated test control and data logging.
– Technical Specifications
• Frequency Range: 10 MHz to 18 GHz
• Power Range: -70 dBm to +26 dBm
• Measurement Speed: 50,000 readings/second (fast/buffer/average mode); variable sampling to 1 MSa/s
• Memory: 1 MB data storage capacity
• Dynamic Range: Wide dynamic range for low and high signal level accuracy
• Connector: Type-N male (Option 100 configurations available)
• Power Supply: Power over Ethernet (PoE) compatible—802.3at or 802.3af injector required
• Physical: 7.08 in. length × 1.41 in. height, 0.66 lbs
– Key Features
• Peak and average power measurement with real-time zero dead time capability
• Average mode time-selectivity with variable aperture duration
• Internal and external trigger support with dedicated trigger I/O connectors
• Internal zeroing and automatic calibration while connected to DUT
• Keysight BenchVue software support for instrument control and test automation
– Typical Applications
• Wireless chipset manufacturing
• Power amplifier and module manufacturing
• Satellite payload testing
• Radar pulse analysis
– Compatibility & Integration
The L2062XA operates as part of the Keysight X-Series power sensor family and integrates with other Keysight instruments. Source power calibration is supported through Keysight network analyzer integration. Standard accessories include LAN cable, trigger cables, and calibration certificate.
