Agilent/Keysight M9122A

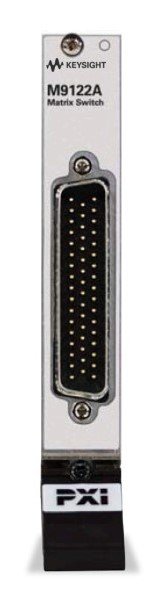

The Keysight M9122A is a PXI matrix switch module delivering an 8×32 full crosspoint configuration for signal routing in automated test systems. This armature relay-based switch matrix handles up to 100 Vrms and 2 A per channel with 60 W maximum power dissipation, making it suitable for moderate-power switching applications. Switching speed is 3 ms. The module connects via a 50-pin D-Type front panel connector and supports both durable connector block and standard cable terminations. It uses an 8-wire wide bus with common ground configuration and operates across 0 °C to +55 °C at up to 95% non-condensing humidity.

– Technical Specifications

• Configuration: 8×32 full crosspoint switch matrix
• Relay Type: Armature relays
• Maximum Voltage: 100 Vrms
• Switching/Carry Current: 2 A per channel
• Maximum Power: 60 W
• Switching Speed: 3 ms
• Bus Width: 8-wire
• Ground: Common ground configuration
• Front Panel: 50-pin D-Type connector
• Operating Temperature: 0 °C to +55 °C
• Humidity: Maximum 95% non-condensing at 40 °C

– Key Features

• 1-wire crosspoint connectivity for simplified signal routing
• High-density 8×32 matrix architecture supports multi-point test configurations
• Armature relay construction rated for 100 Vrms, 2 A continuous switching
• Fast 3 ms switching enables rapid test sequencing
• Flexible connector options: terminal block or cable-based terminations
• PXI compliance: J1 connector compatible with cPCI, PXI-1, or PXIe hybrid slots

– Typical Applications

• Multi-channel signal routing and switching in test benches
• High-voltage switching matrices for power electronics testing
• Automated instrument interconnect for modular test systems
• Production test environments requiring fast relay switching

– Compatibility & Integration

Software drivers include IVI-COM, IVI-C, and LabVIEW implementations. Programming support spans Visual Studio, C, C++, C#, Visual Basic, and MATLAB. Integration tools include Keysight Connection Expert and Soft Front Panels. Compatible with PXI chassis equipped with cPCI (J1), PXI-1 (J1 only), or PXIe hybrid slot connectors.
