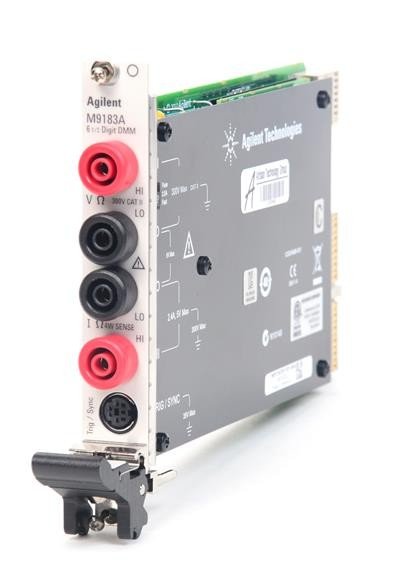

The Keysight M9183A is a 6½-digit PXIe source/measurement unit engineered for high-throughput automated test environments. It simultaneously sources and measures voltage and current with market-leading speed: up to 15,000 readings/second at a 66 µs reading interval. This hybrid-compatible module integrates into PXI, CompactPCI, or PXIe chassis and delivers comprehensive measurement coverage across DC/AC voltage and current, 2- and 4-wire resistance, frequency, period, capacitance, temperature (thermocouple, RTD, thermistor), pulse width, duty cycle, and event counting.
– Technical Specifications
Measurement Range & Resolution:
• 6½-digit resolution
• DC Voltage: 200 mV to 300 V (40 ppm basic 1-year accuracy)
• AC Voltage: True RMS, multiple ranges
• DC Current: 200 nA to 2 A
• AC Current: 2 mA to 2 A
• Resistance: 20 Ω to 200 MΩ (2-wire and 4-wire)
• Frequency: 1 Hz to 300 kHz
• Capacitance: 1 nF to 10 mF
• Temperature: Thermocouple (B, E, J, K, N, R, S, T), RTD (6 types), Thermistor (2.25 kΩ, 5 kΩ, 10 kΩ)
Sourcing:
• DC voltage source: ±10 V
• DC current source: ±1.2 µA to ±12 mA
Performance:
• Maximum reading rate: 15,000 readings/second (at 4½ digits)
• Reading interval: 66 µs
– Key Features
• Advanced triggering: external inputs, analog threshold triggering with pre- and post-trigger levels
• Floating isolation (CAT II) rated to 300 Vrms
• Factory calibrated with ISO-9002 and NIST-traceable certification; annual calibration recommended
• Offset-compensated ohms, pulse width, duty cycle, totalizer, and event counter functions
– Compatibility & Integration
PXI-1 (J1) and PXIe hybrid slot compatible. Operates in PXI, CompactPCI, and hybrid chassis. Includes external trigger I/O and DMM output for system synchronization. Windows XP, Vista, and Windows 7 driver support.
